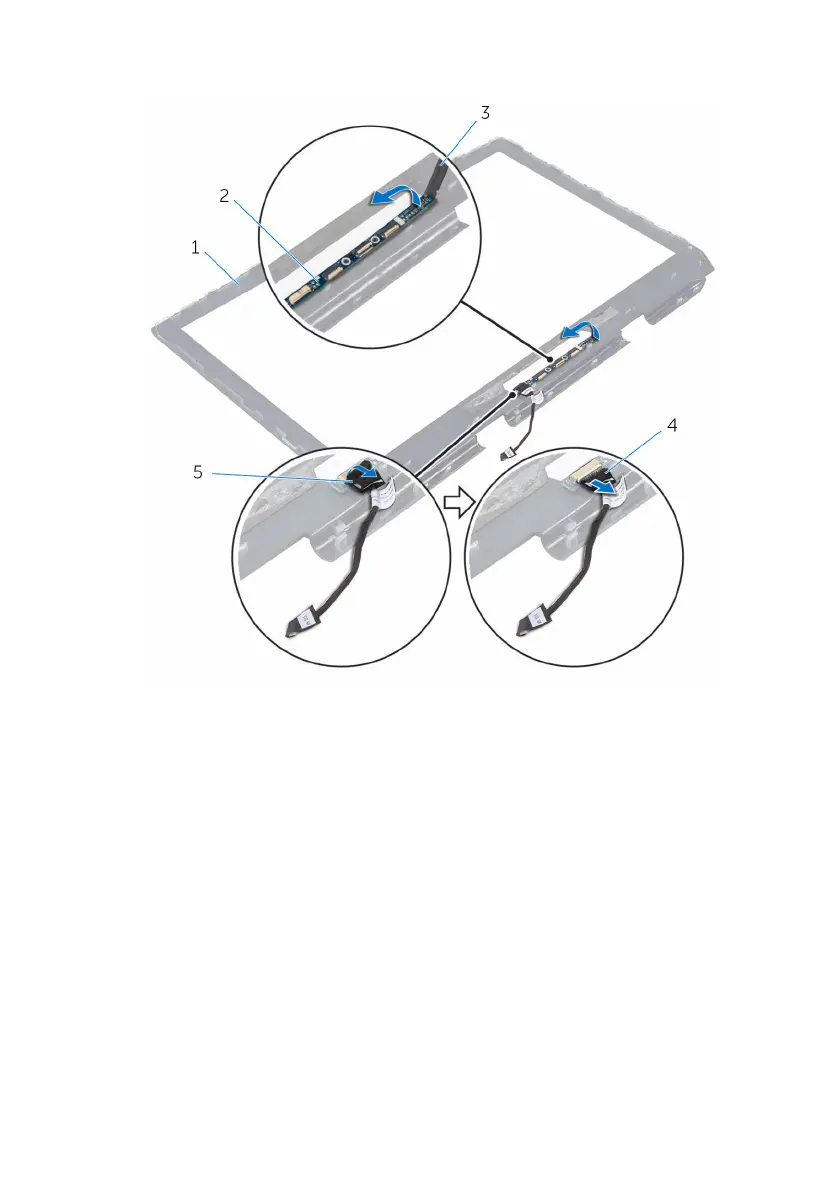

6 Peel off the logo board from the display bezel.

1 display bezel 2 logo board

3 plastic scribe 4 logo-board cable

5 tape

103
