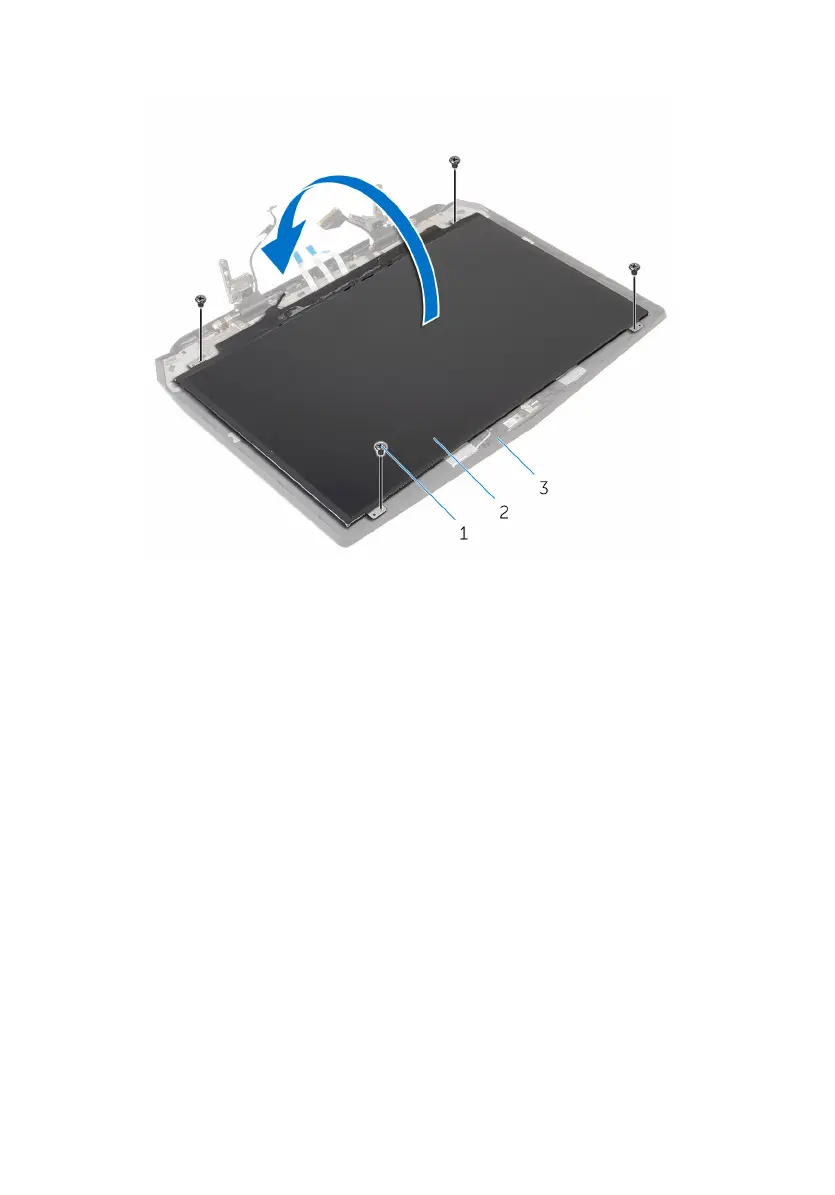

2 Gently lift the display panel and turn it over.

1 screws (4) 2 display panel

3 display back-cover

3 Lift the latch and disconnect the display cable from the display panel.

107
