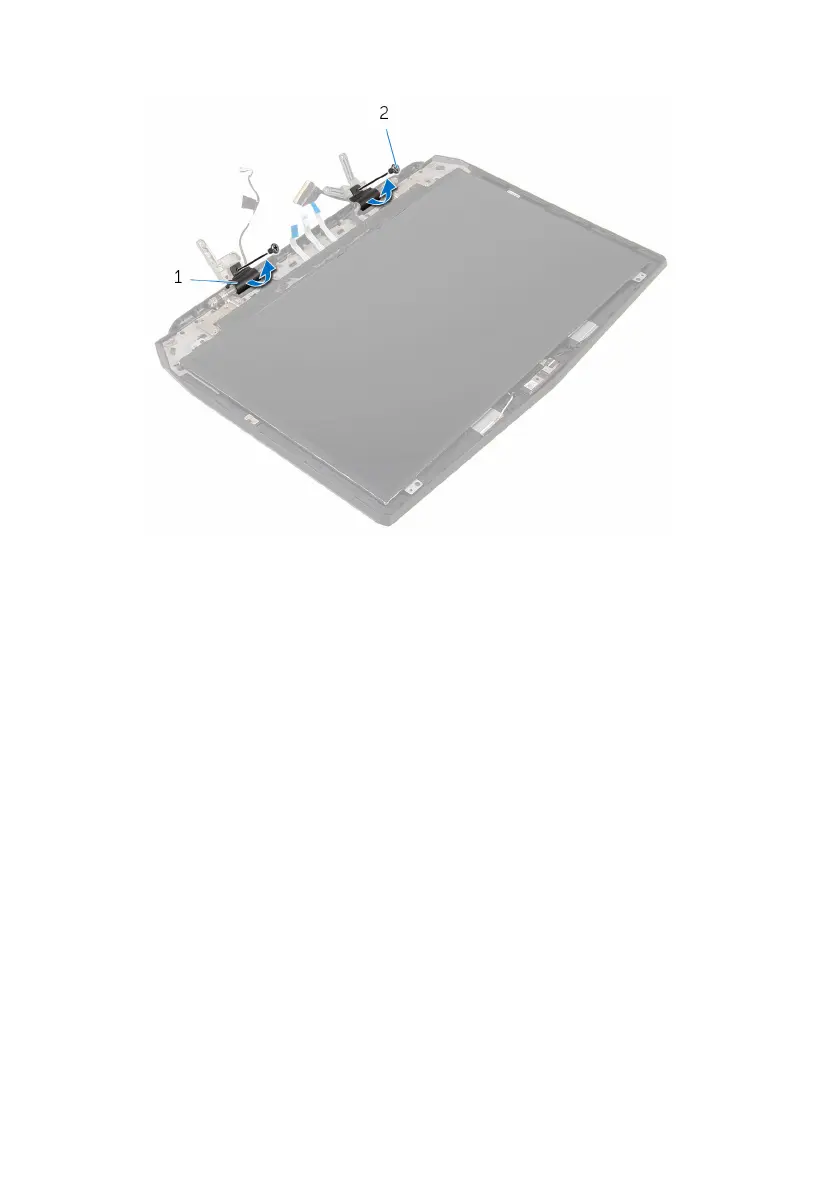

2 Lift the hinge caps off the display hinges.

1 hinge caps (2) 2 screws (2)

3 Remove the screws that secure the display hinges to the display back-

cover.

111
