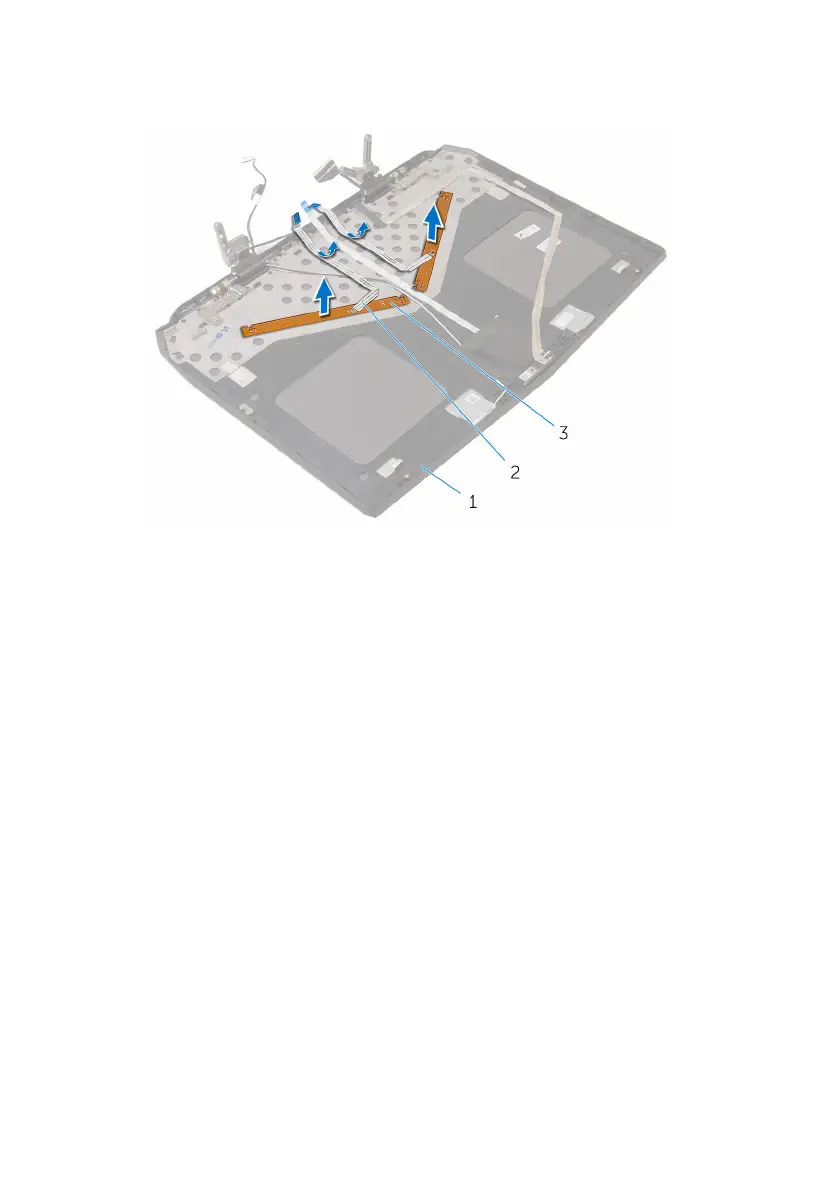

2 Lift the display-board cables and the display-panel AlienFX LEDs off the

display back-cover.

1 display back-cover 2 display-board cables (2)

3 display-panel AlienFX LEDs

(2)

126
