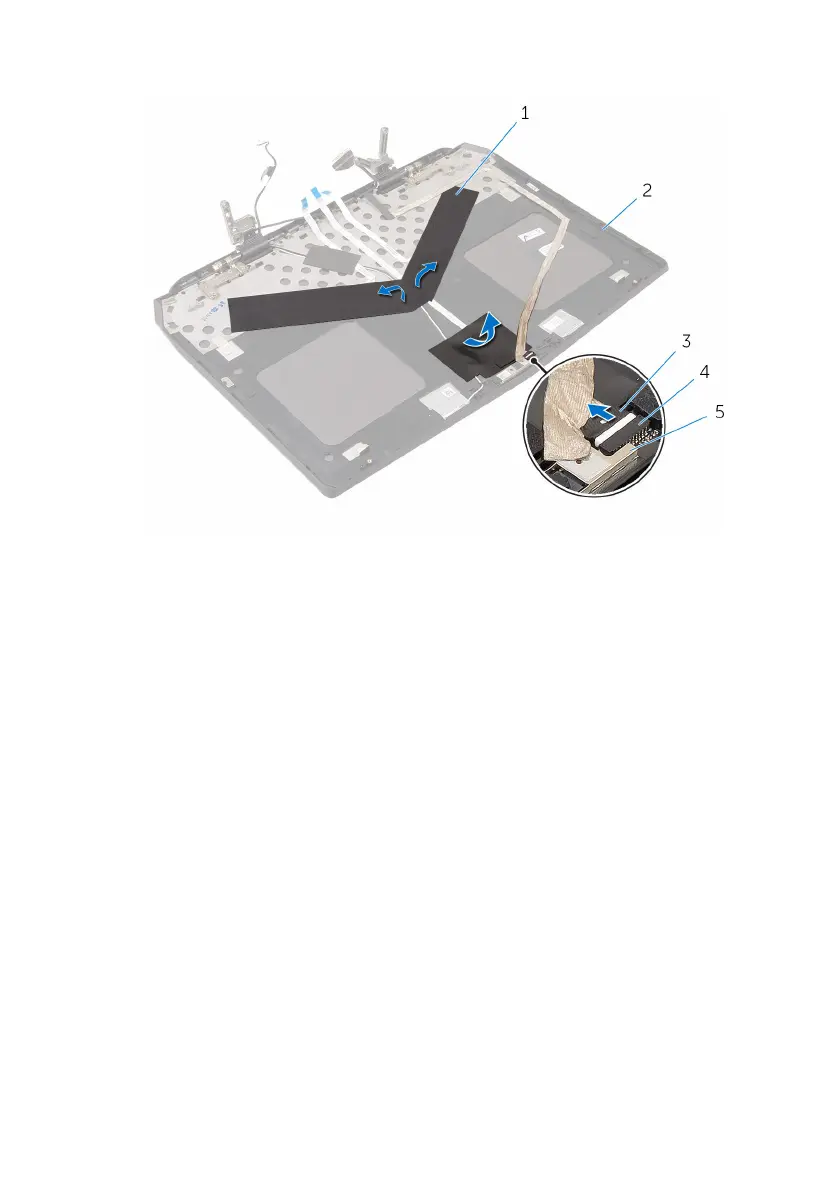

3 Peel off the mylar to access the Alienware AlienHead LED board.

1 mylar 2 display back-cover

3 camera cable 4 connector

5 camera module

129
