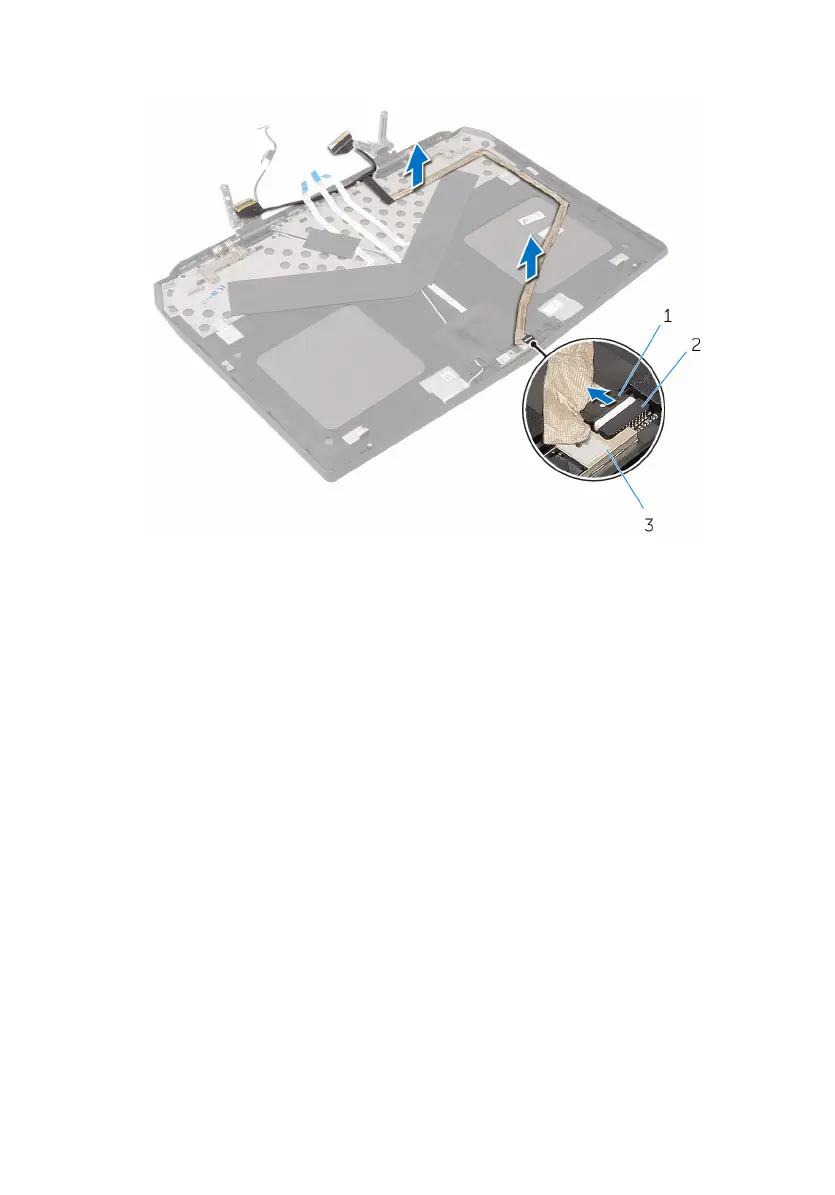

3 Peel the display-board and camera cable off the display back-cover.

1 camera cable 2 connector

3 camera module

4 Remove the AlienFX Display light.

5 Remove the AlienFX AlienHead board.

133
