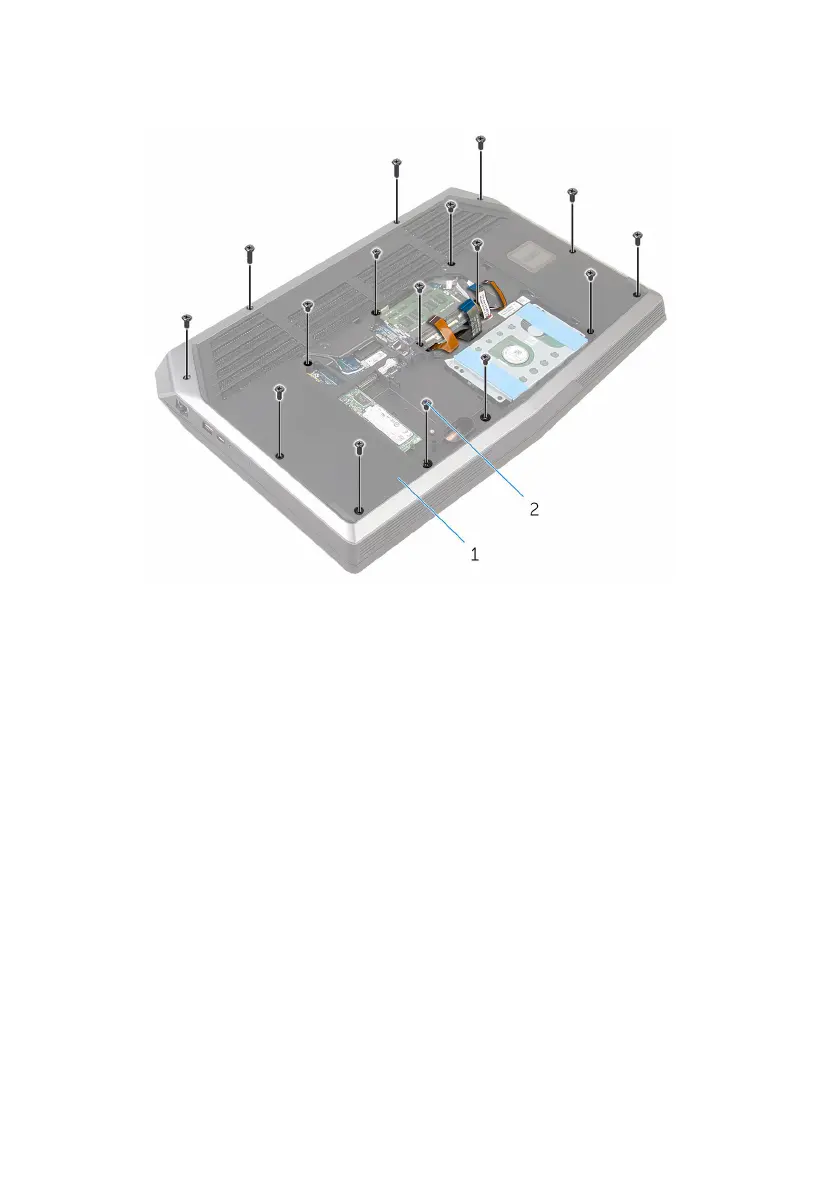

2 Remove the screws that secure the palm-rest assembly to the computer

base.

1 computer base 2 screws (16)
