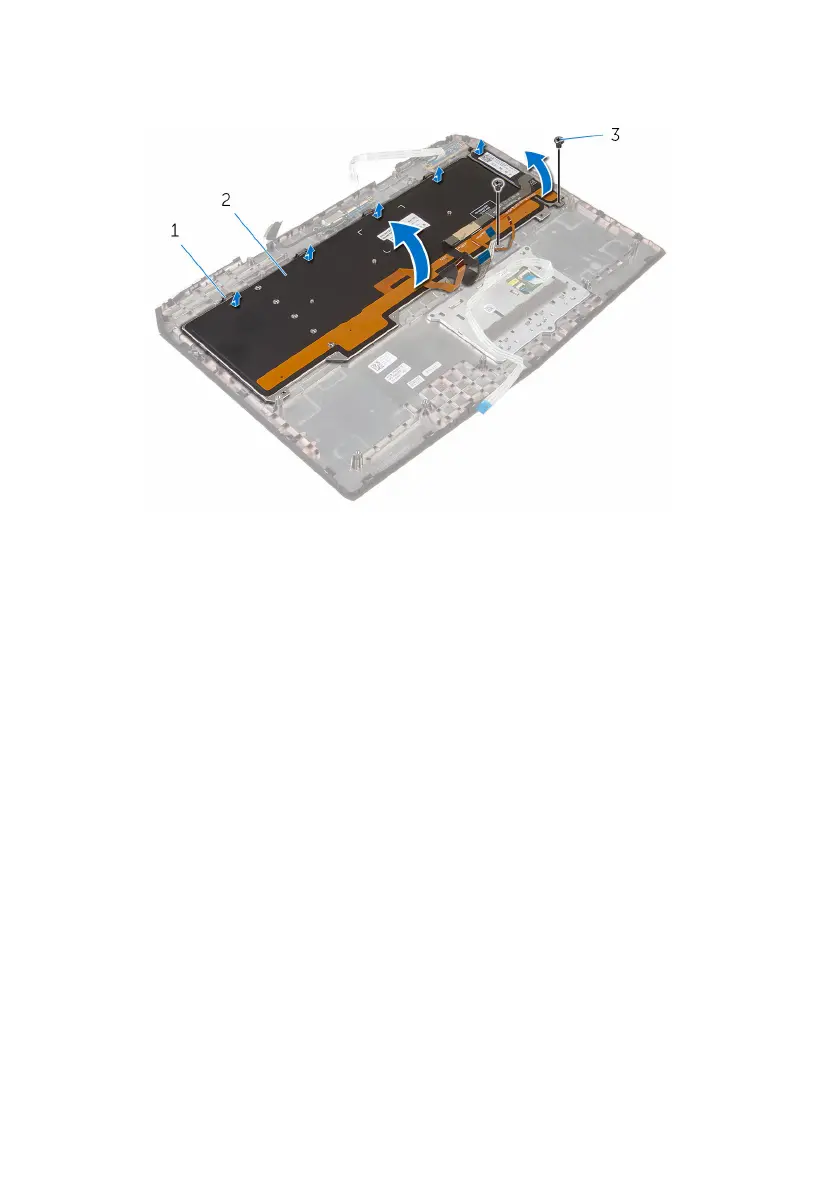

8 Slide and lift the keyboard along with the cables off the palm-rest

assembly.

1 tabs (5) 2 keyboard

3 screws (2)
