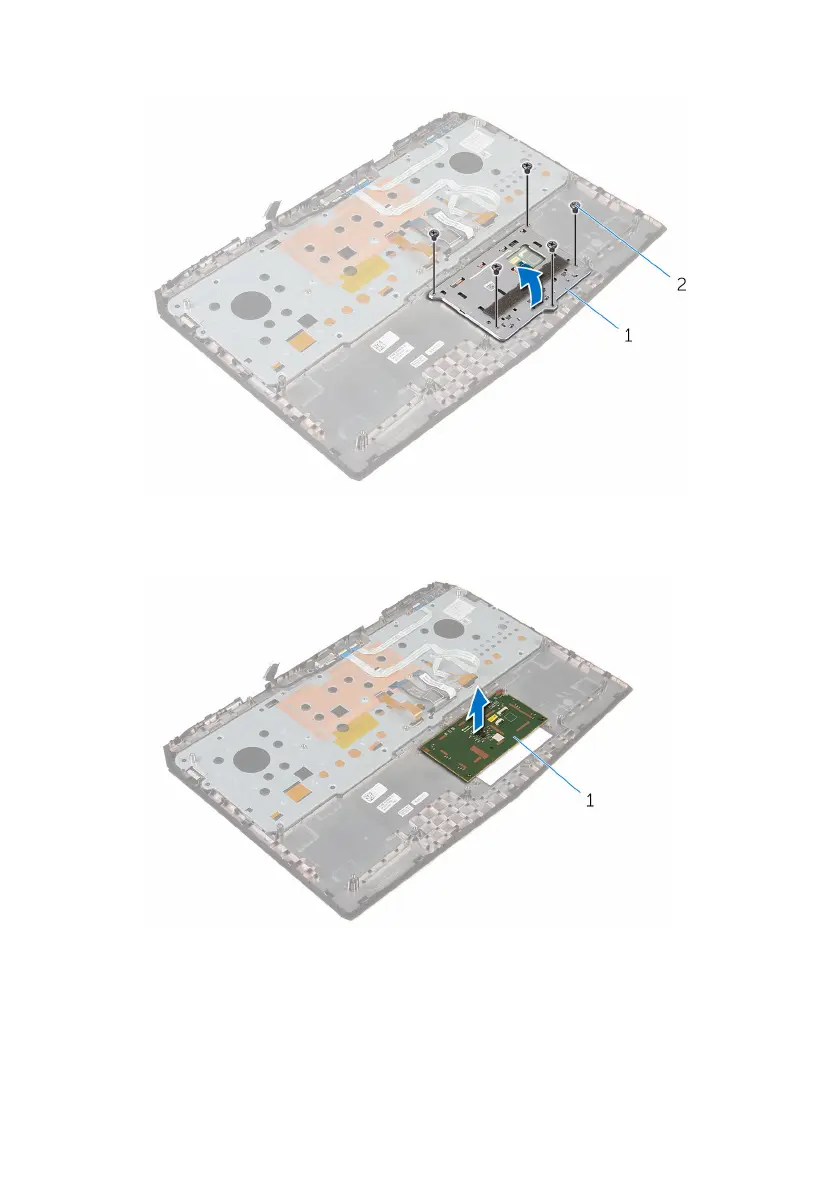

3 Lift the touch-pad button bracket off the palm-rest assembly.

1 touch-pad button bracket 2 screws (5)

4 Lift the touch pad off the palm-rest assembly.

1 touch pad
