Dell Alienware 17 R3 - Page 59

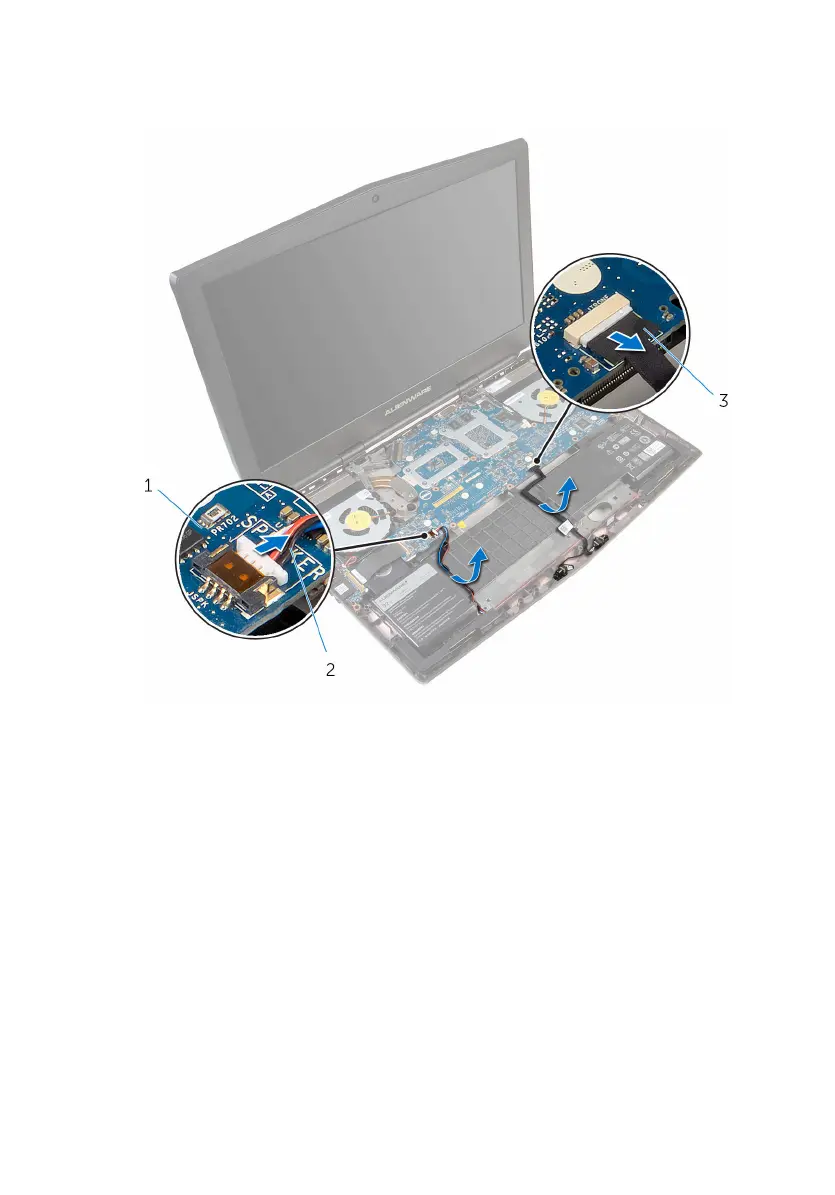

3 Note the front AlienFX LED cable routing and peel off the cable from the
battery.
1 system board 2 speaker cable
3 front AlienFX LED cable
4 Remove the battery cable from the slot on the computer base.
5 Remove the screws that secure the battery to the computer base.
59
