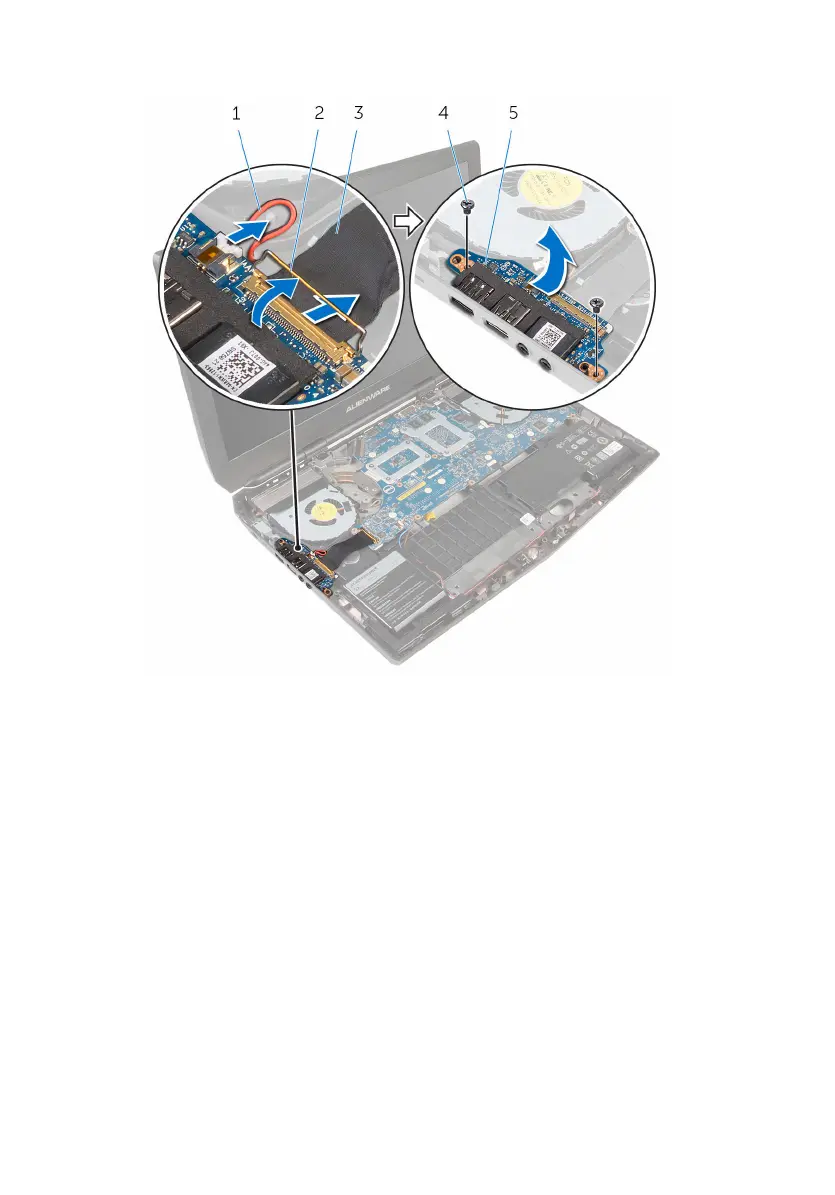

5 Lift the I/O board off the computer base.

1 subwoofer cable 2 latch

3 I/O-board cable 4 screws (2)

5 I/O board
