NOTE: While removing the speakers, technicians must first peel the clear transparent covering the speaker cable. If not
peeled, there is a risk of damaging the speaker cable while removing the speakers.
4. Unroute the speaker cable from retention clips in the routing channels at the bottom of the palmrest assembly.
5. Lift and remove the speakers from their slots on the palmrest assembly.
Installing the speaker
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

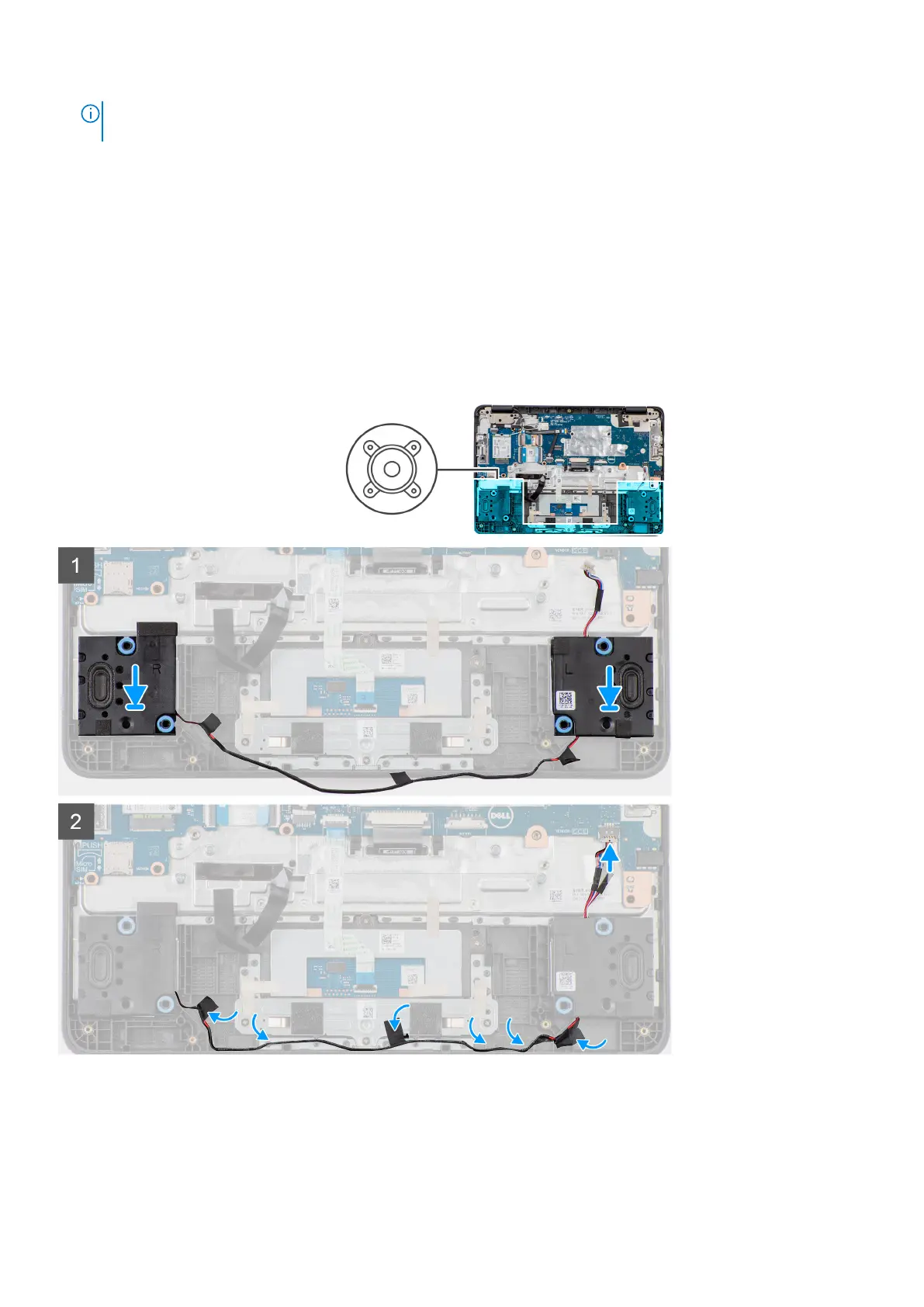

The following image indicates the location of the speaker and provides a visual representation of the installation procedure.
Steps
1. Place the speakers into the slots on the palmrest assembly.
2. Reroute the speaker cable through the retention clips in the routing channel.
Removing and installing components
41
