Installation and Removal of the Rail Kit
T
opics:
• Install the rails
• Install onto the rails
• Remove from the rails
Install the rails
This procedures describes how to install the mounting rails.
Steps

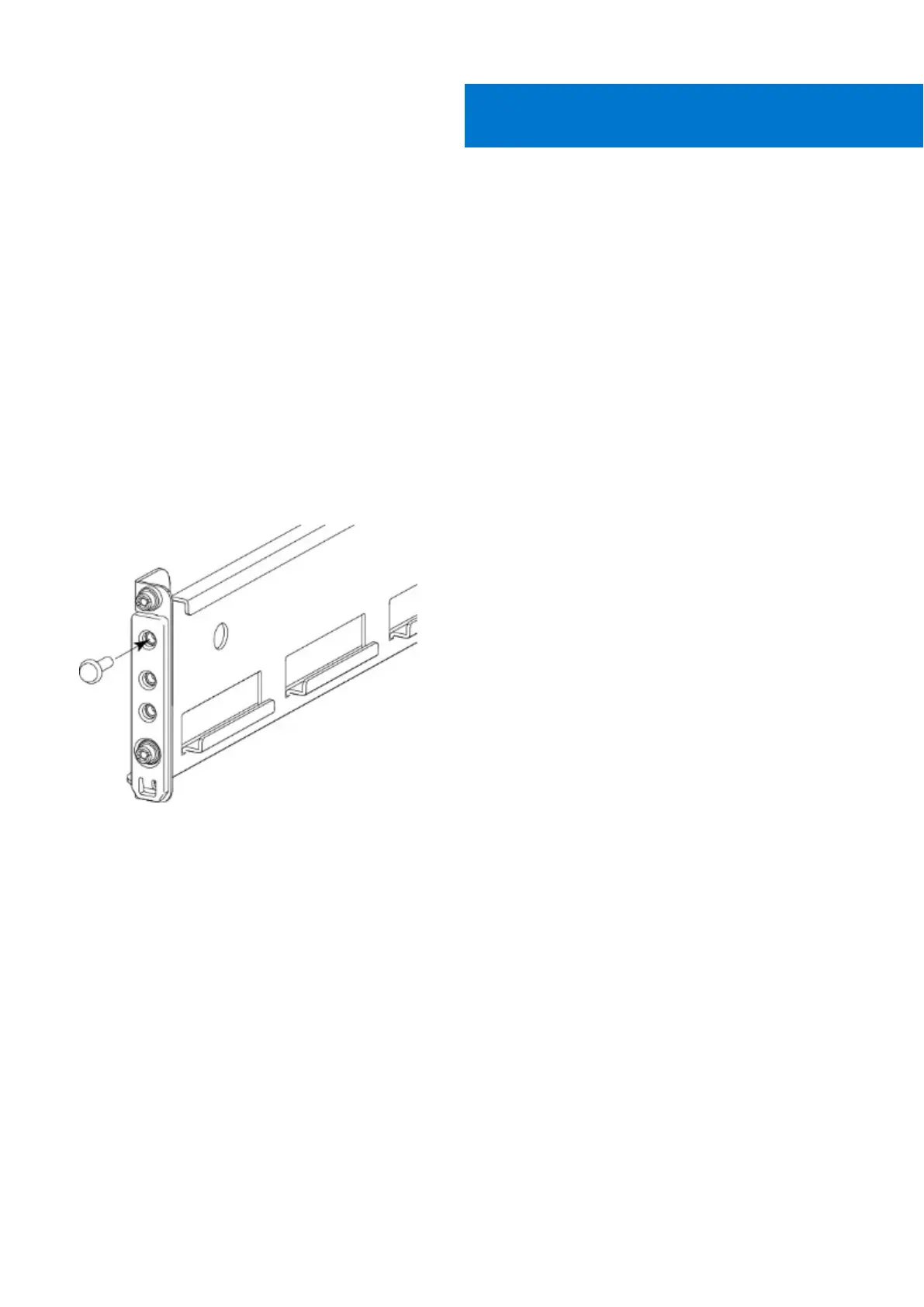

1. If EIA rail mounting holes of 7.1 MM diameter round, or M5, 12-24, 10-32 threaded, are being used, install the filler using the
pin as shown. If not, proceed to the next step.
Once the filler is installed to the rail, the installation can continue as follows.
2
. At the front of the cabinet, insert the two adaptors on the front of the rail into the correct holes in the 2U space.
3
60 Installation and Removal of the Rail Kit
