Connecting One Monitor With a VGA Connector and One Monitor With a DVI Connector
1 Follow the procedures in "Before You Begin" on page 61.
2 Connect the VGA connector on the monitor to the VGA (blue) connector on the back of the computer.
3 Connect the DVI connector on the other monitor to the DVI (white) connector on the back of the
computer.
Connecting a TV
NOTE: You must purchase an S-video cable, available at most consumer electronics stores, to connect a TV to
your computer. It is not included with your computer.
1 Follow the procedures in "Before You Begin" on page 61.
2 Connect one end of the S-video cable to the optional TV-OUT connector on the back of the computer.
3 Connect the other end of the S-video cable to the S-video input connector on your TV.
4 Connect the VGA or DVI monitor.

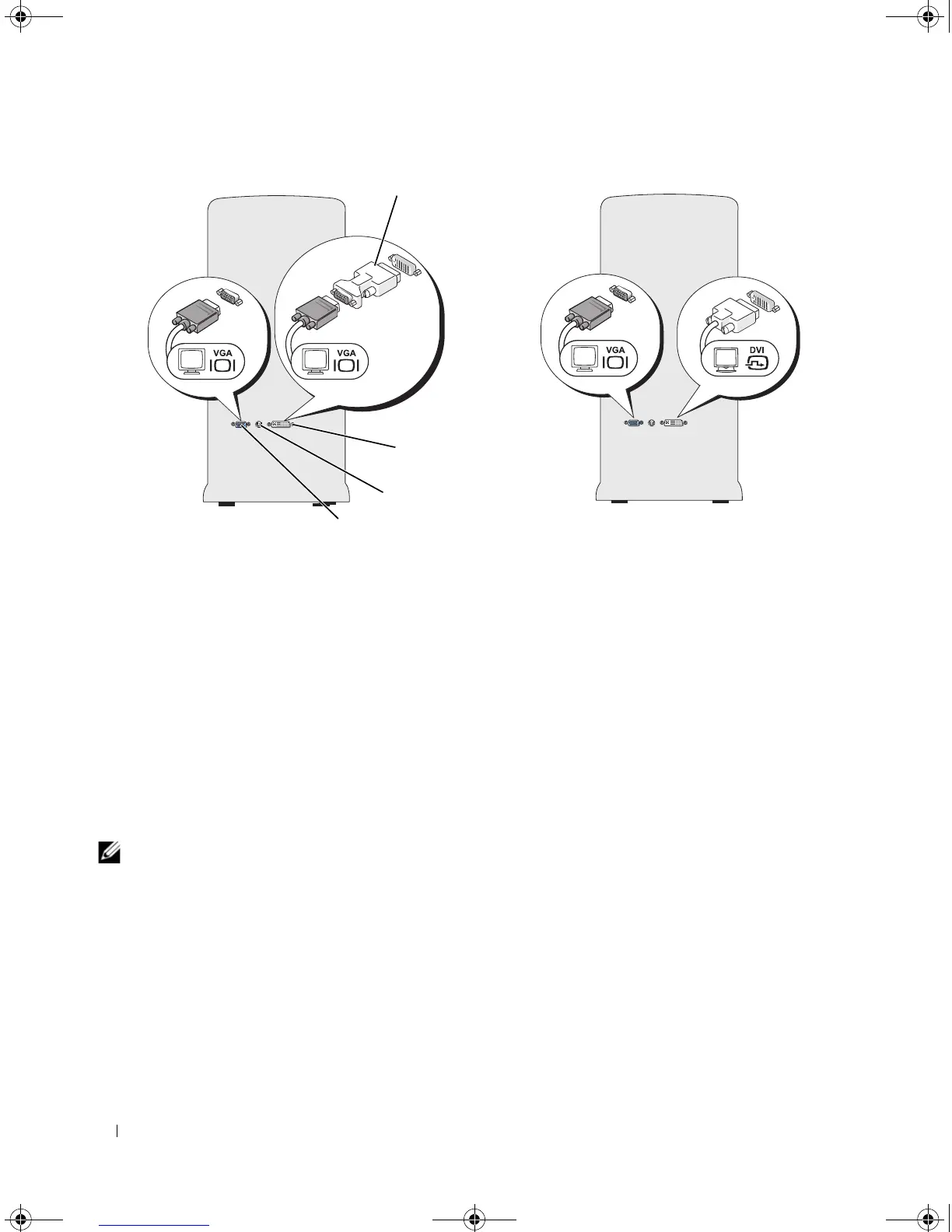

1 optional DVI adapter 2 DVI (white) connector 3 TV-OUT connector
4 VGA (blue) connector
*May not be present on your computer
