Dell E190Sf User Manual

Service Manual
20
3. Assembly Block
PCBA,P/I board,LE1966-7B0 1pc
screw,p,cross,
W/WAS,M3*8,Zn-Cc 2PCS
screw,B,cross,
W/W(T),M4*6,Zn-Cc 1PC
PCBA,I/F board,LE1966-8B0 1pc
screw,p,cross,
W/WAS,M3*8,Zn-Cc 2PCS
BOLT,#4-40*12.5,Ni 2pcs
screw,I,M3*6,Zn-Cc 2PCS
screw,F(90度),cross,
M3*4,Zn-Cc 2pcs
SHELD EMI,
LP2207,6pcs
spring 2pc
fix-plate2 1pc
fix-plate1 1pc
slide 1pc
chassis assy 1pc
vesa-release-button
1pc
release-metal-button
1pc
release button assy
1pc
stand assy 1pc
bezel assy 1PC

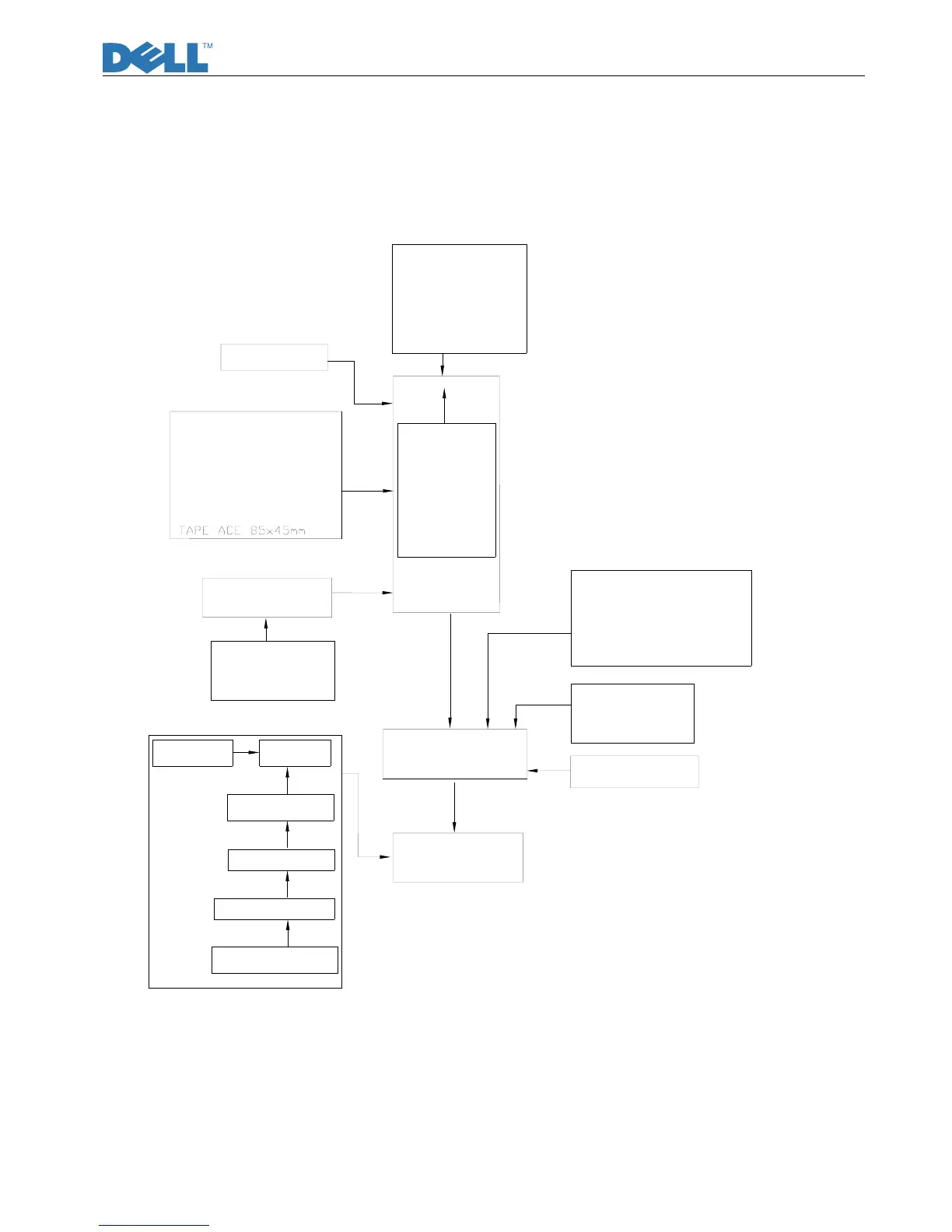

DELL E190Sf ASSEMBLY BLOCK
back-cover assy1pc
panel 1pc
screw,I,M3*4,Zn-Cc 4pcs (HSD PANEL)
screw,I,M3*5,Zn-Cc 4pcs (LGD PANEL)
bottom-mylar 1pc
SCREW,BPT3.0x4 C3UC
ROHS, 2PCS
LVDS cable 1pc
top-mylar 1pc
chassis 1pc
LOGO 1PC
front-bezel
1PC
key button 1PC
screw,P,cross,
M4*10,blk-NYLOK,
4pcs
INSULATOR,MYLAR
,KEY-PAD PCB 1PCS
keypad PCB 1PC
SCREW,I,CROSS,T.T-2*2.5
,Zn,ROHS,2PCS
back-cover 1pc
kensing-ton 1pc
Rubber
10x20x3.8mm 2pcs

Dell E190Sf Specifications

General

Brand	Dell
Model	E190Sf
Category	Monitor
Language	English
