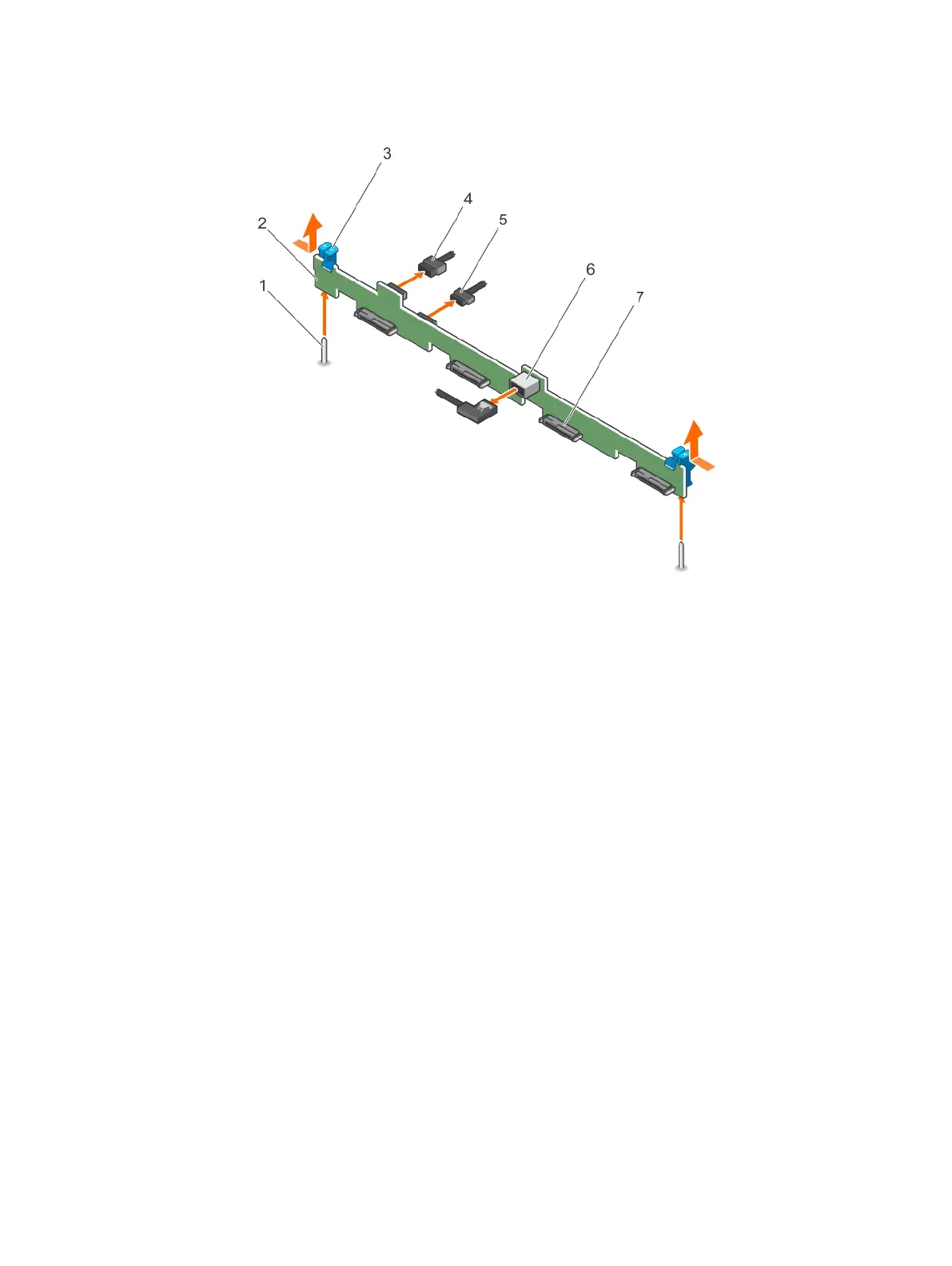

Figure 78 Removing the four 3.5 inch hard drive SAS/SATA backplane
a. guide (2)
b. hard drive/SSD backplane
c. release tab (2)
d. backplane power cable
e. backplane signal cable
f. SAS_A connector on the backplane
g. hard drive/SSD connector (4)
Installing and removing system components
Dell PowerEdge R430 Owner's Manual 163
