Dell E28S Series

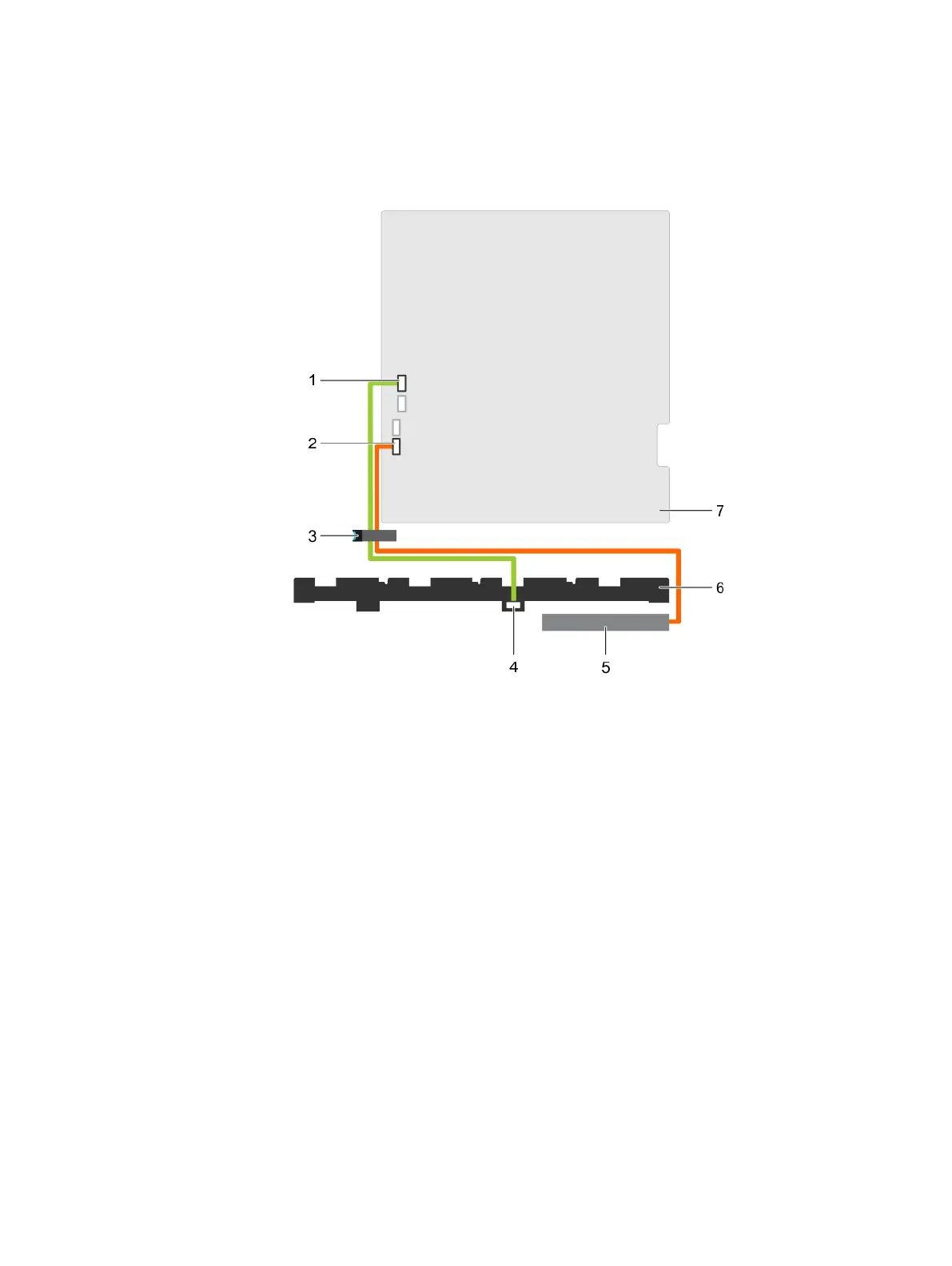

Figure 79 Cabling diagram—Four 3.5 inch or 2.5 inch hard drive SAS/SATA backplane
a. SW_RAID_A connector on the system board
b. SATA_CDROM connector on the system board
c. cable routing latch
d. SAS_A connector on the backplane
e. Optical Disk Drive (ODD)
f. hard drive backplane
g. system board
Installing and removing system components
164 Dell PowerEdge R430 Owner's Manual
