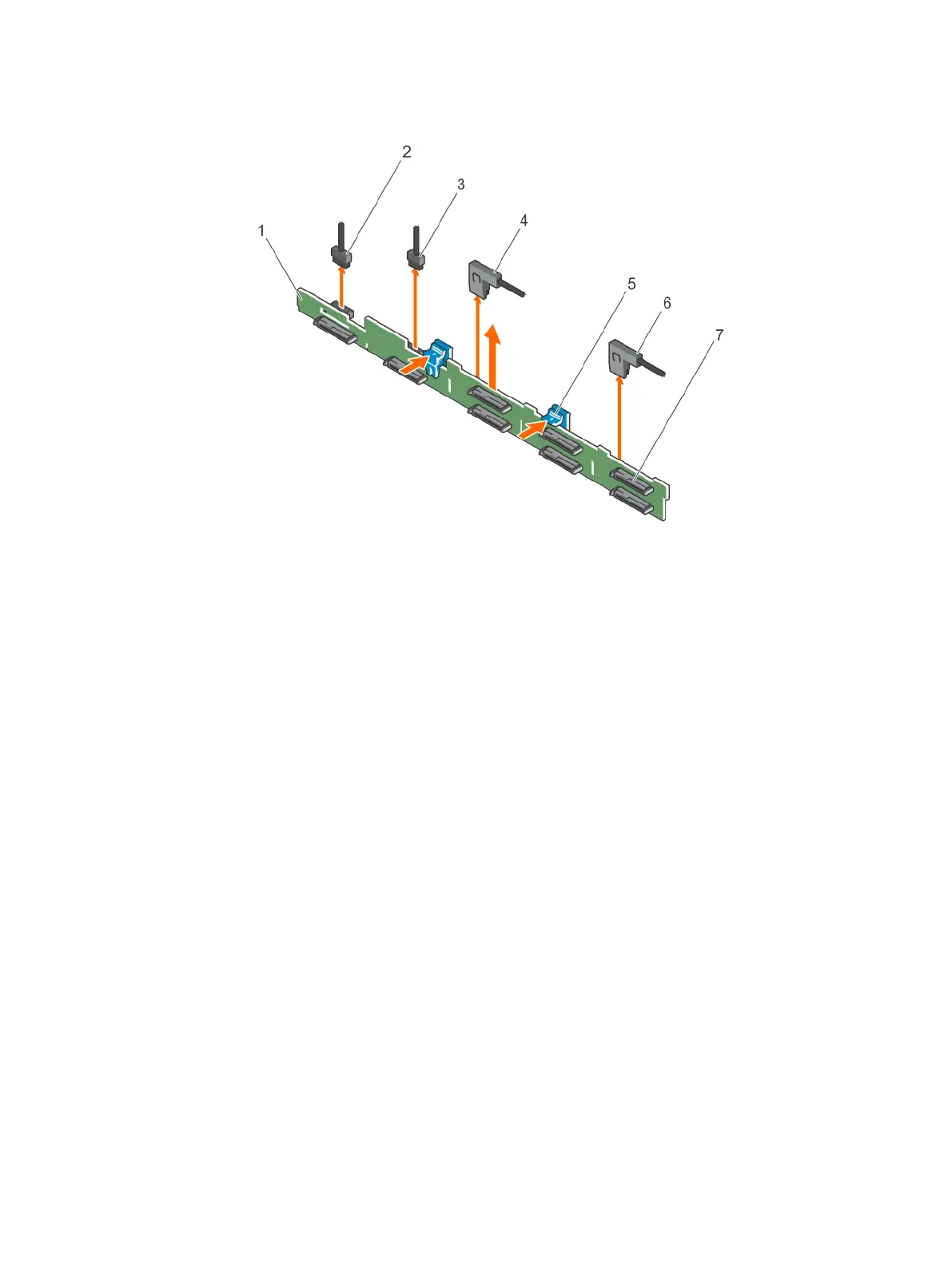

Figure 80 Removing the eight 2.5 inch SAS/SATA backplane
a. hard drive/SSD backplane
b. backplane power cable
c. backplane signal cable
d. SAS_A cable connector
e. release tab (2)
f. SAS_B cable connector
g. hard drive/SSD connector (8)
Installing and removing system components
Dell PowerEdge R430 Owner's Manual 165
