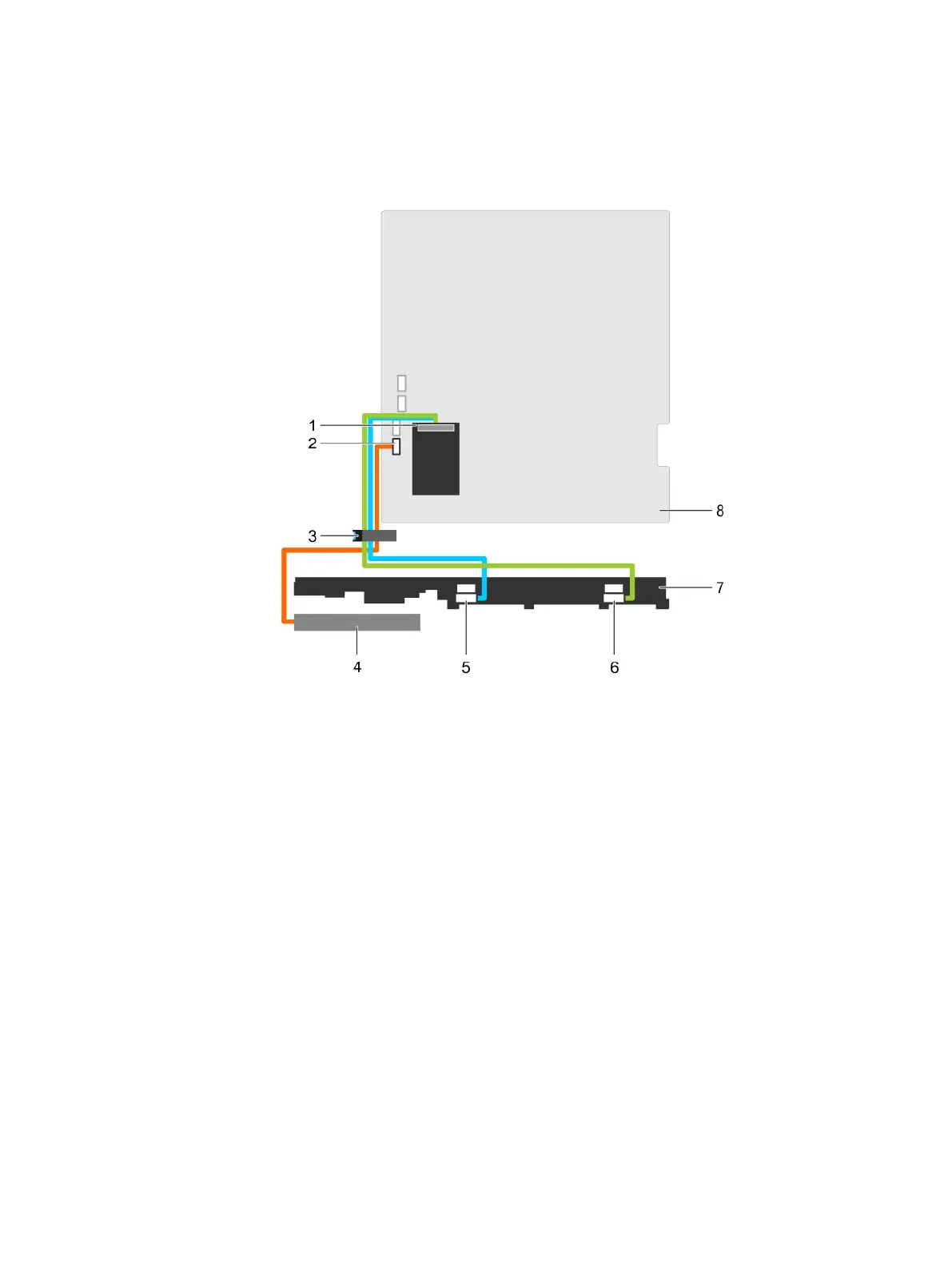

Figure 81 Cabling diagram—Eight 2.5 inch SAS/SATA backplane
a. integrated storage controller card
b. SATA_CDROM connector on the system board
c. cable routing latch
d. Optical Disk Drive (ODD)
e. SAS_A connector on the backplane
f. SAS_ B connector on the backplane
g. hard drive/SSD backplane
h. system board
Installing and removing system components
166 Dell PowerEdge R430 Owner's Manual
