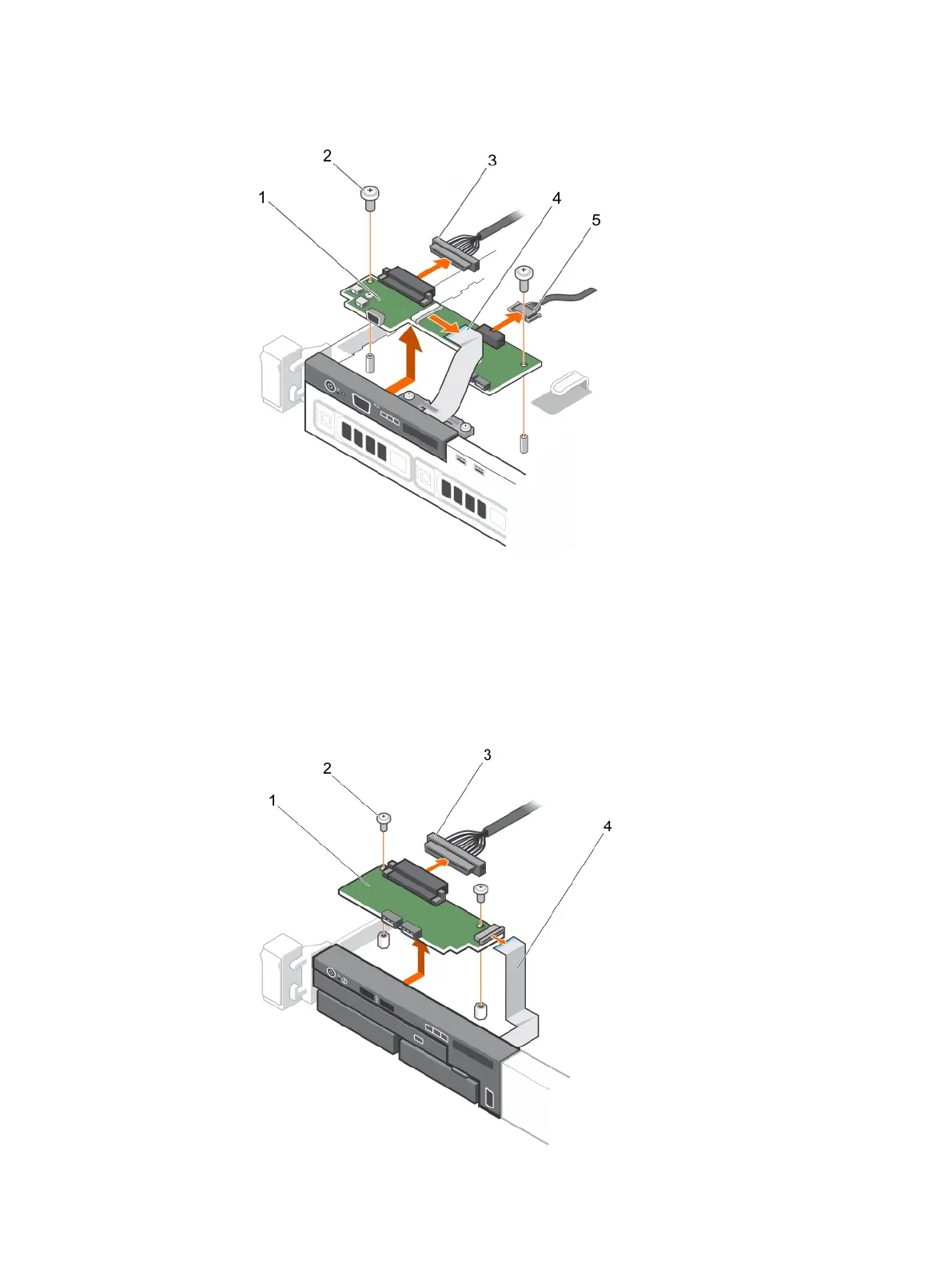

Figure 94 Removing the control panel module—four hard-drive chassis
a. control panel module
b. control panel module screws (2)
c. control panel module connector cable
d. display module cable
e. USB connector cable
Figure 95 Removing the control panel module—eight hard-drive chassis
a. control panel module
Installing and removing system components
