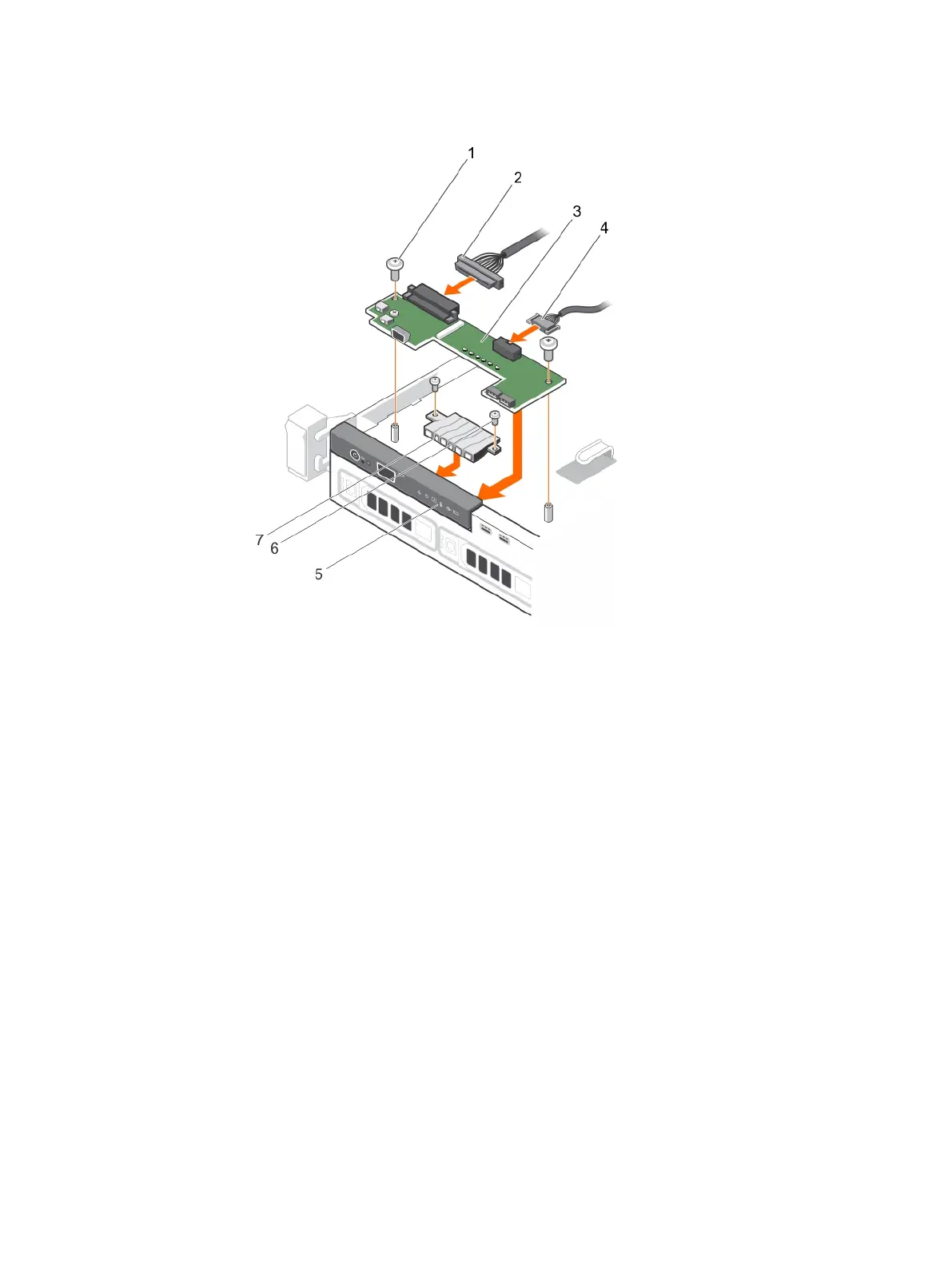

Figure 96 Installing the control panel module—four cabled hard-drive chassis
a. screw (2)
b. control panel module connector cable
c. control panel module
d. USB connector cable
e. control panel
f. LED-panel screw (2)
g. LED panel
Installing and removing system components
Dell PowerEdge R430 Owner's Manual 179
