1 Locate the IDSDM/vFlash connector on the system board.
To locate IDSDM/vFlash, see the System board jumpers and connectors section.
2 Align IDSDM/vFlash card with the connector on the system board.
3 Push IDSDM/vFlash card until it is rmly seated on the system board.

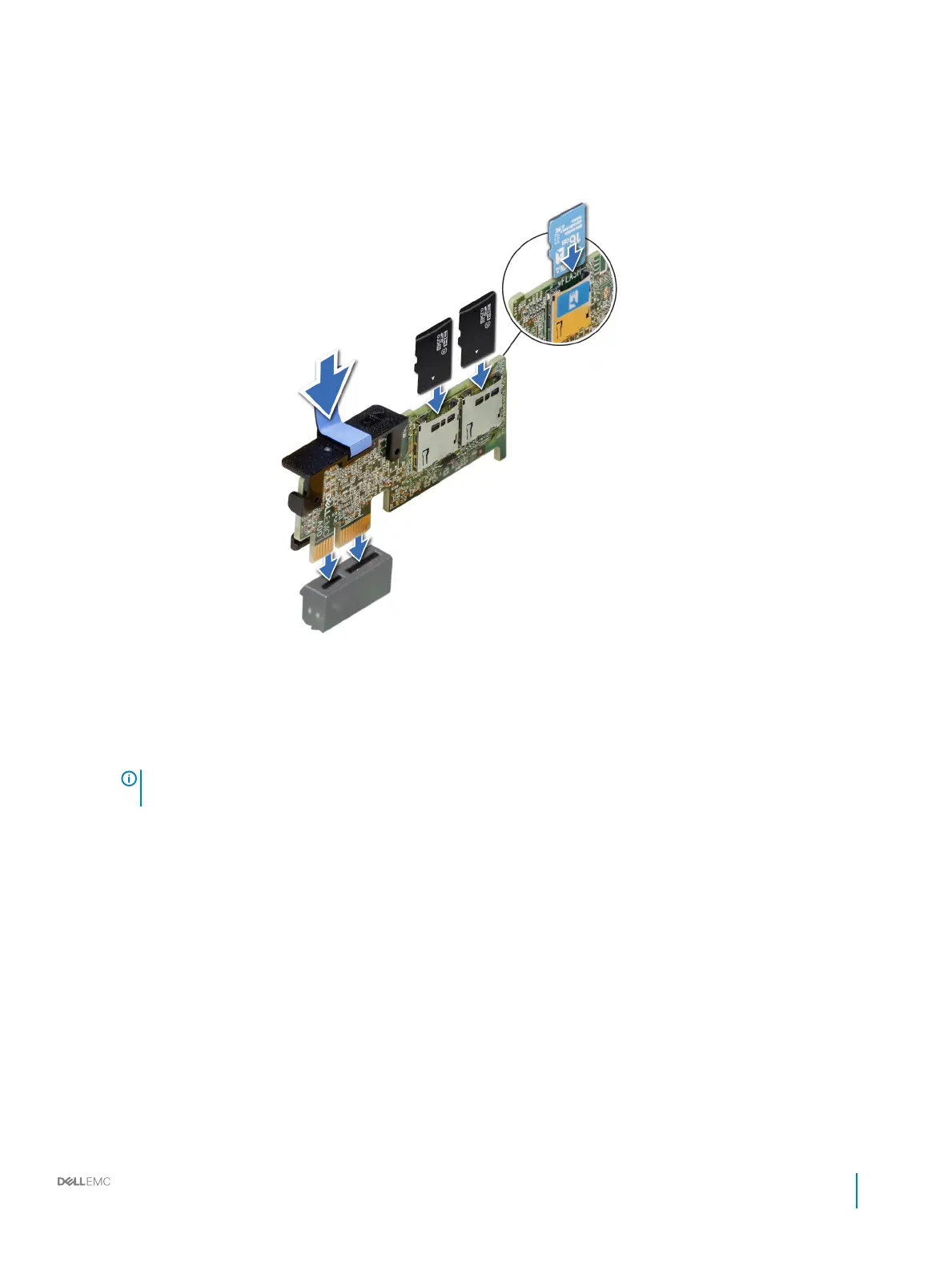

Figure 63. Installing optional IDSDM/vFlash card
Next steps
1 Install the MicroSD cards.
NOTE
: Reinstall the MicroSD cards into the same slots based on the labels you had marked on the cards during
removal.
2 Follow the procedure listed in After working inside your system.
Related link
System board jumpers and connectors
Installing the MicroSD card
Processors and heat sinks
The processor controls memory, peripheral interfaces, and other components of the system. The system can have more than one
processor congurations.
The heat sink absorbs the heat generated by the processor, and helps the processor to maintain its optimal temperature level.
