System board jumpers and connectors

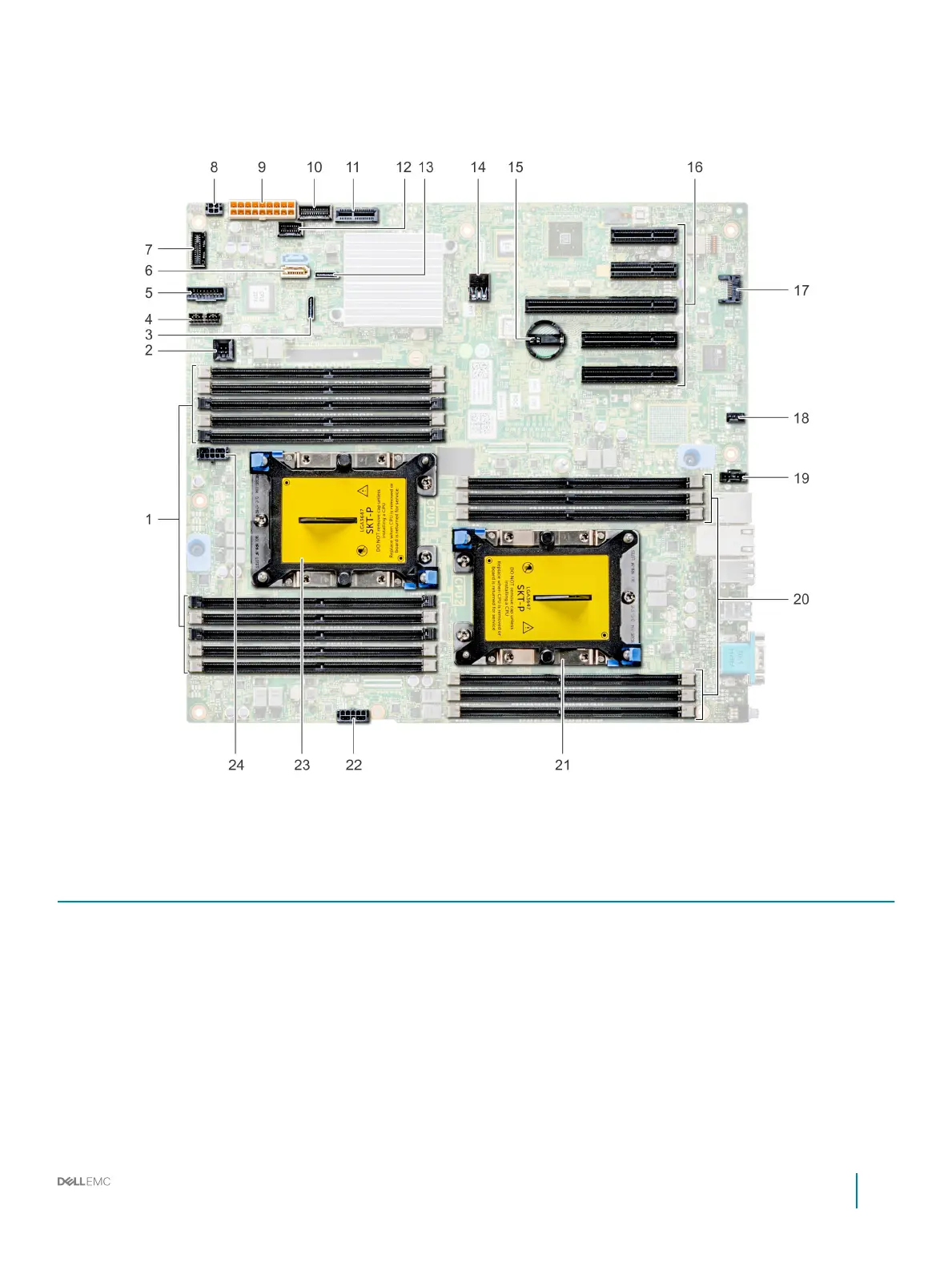

Figure 89. T440 System board jumpers and connectors
Table 38. System board connectors
Item Connector Description
1 DIMMs for CPU 1 channels 0,1,2,3,4,5 Memory slots A1-A10 for CPU 1
2 Intrusion switch Intrusion switch connector
3 SATA B Onboard SATA B connector
4 Backplane signal Backplane signal connector
5 Front_USB
Front USB connector
6 SATA connector
SATA connector
7 Control panel
Control panel connector
Installation and Service Manual
Jumpers and connectors
147
