Dell E30S002 - Installing a Cabled Drive

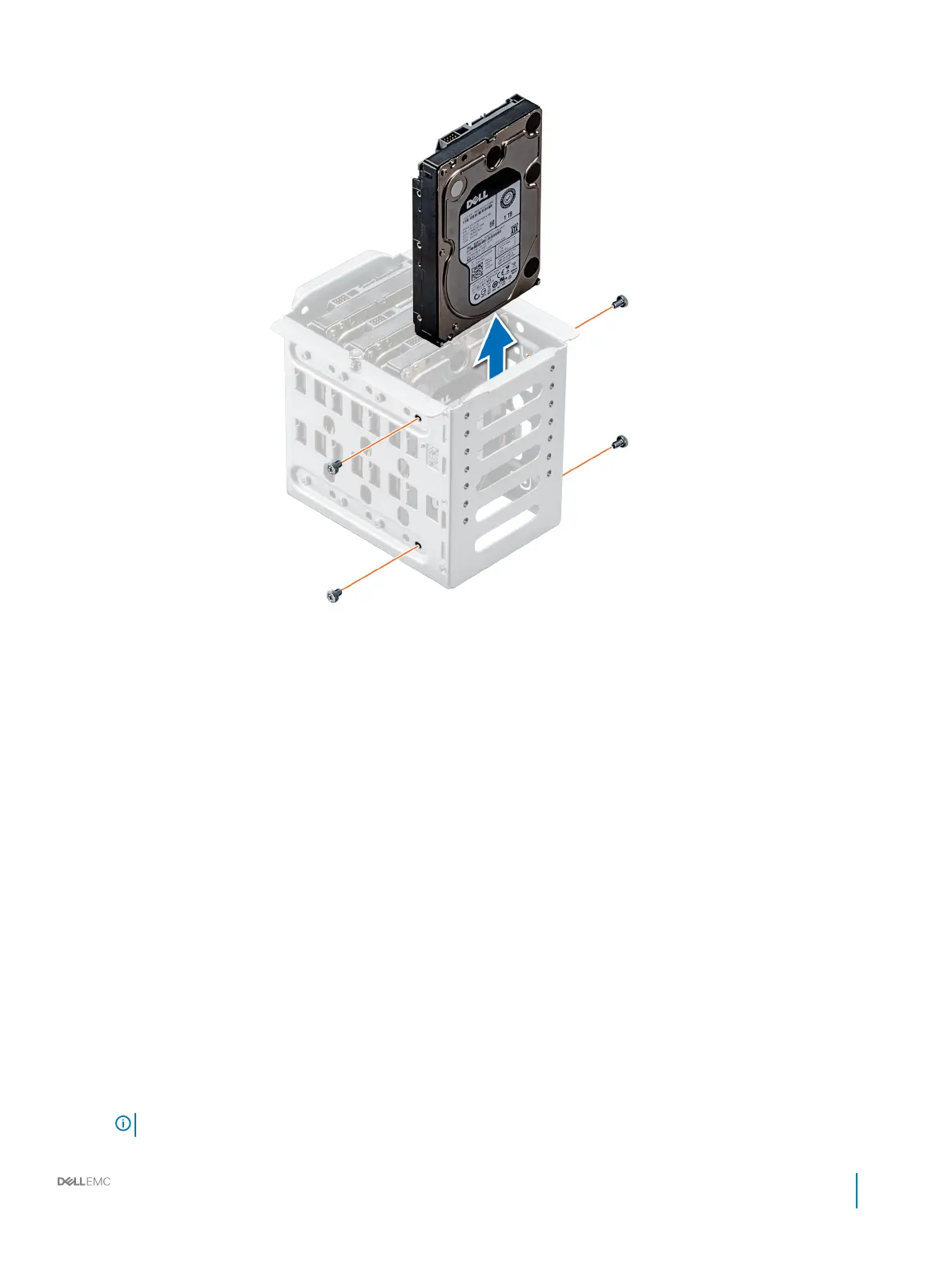

Figure 39. Removing a cabled drive
Next steps
1 Follow the procedure listed in After working inside your system.
2 Install the internal drive bay into the chassis.
3 If disconnected, reconnect the power and data cable(s) to the remaining drive(s) in the internal drive bay.
Related link
Removing the internal hard drive bay
Installing the internal hard drive bay
Installing a cabled drive
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the internal drive bay.
Steps
1 Insert the drive into the internal drive bay with the drive connector facing outward.
2 Secure the drive to the internal drive bay using the four screws.
NOTE
: When installing new drives into the internal drive bay, use the spare drive screws attached to the drive bay.
Installation and Service Manual
Installing and removing system components
87
