NIC indicator codes

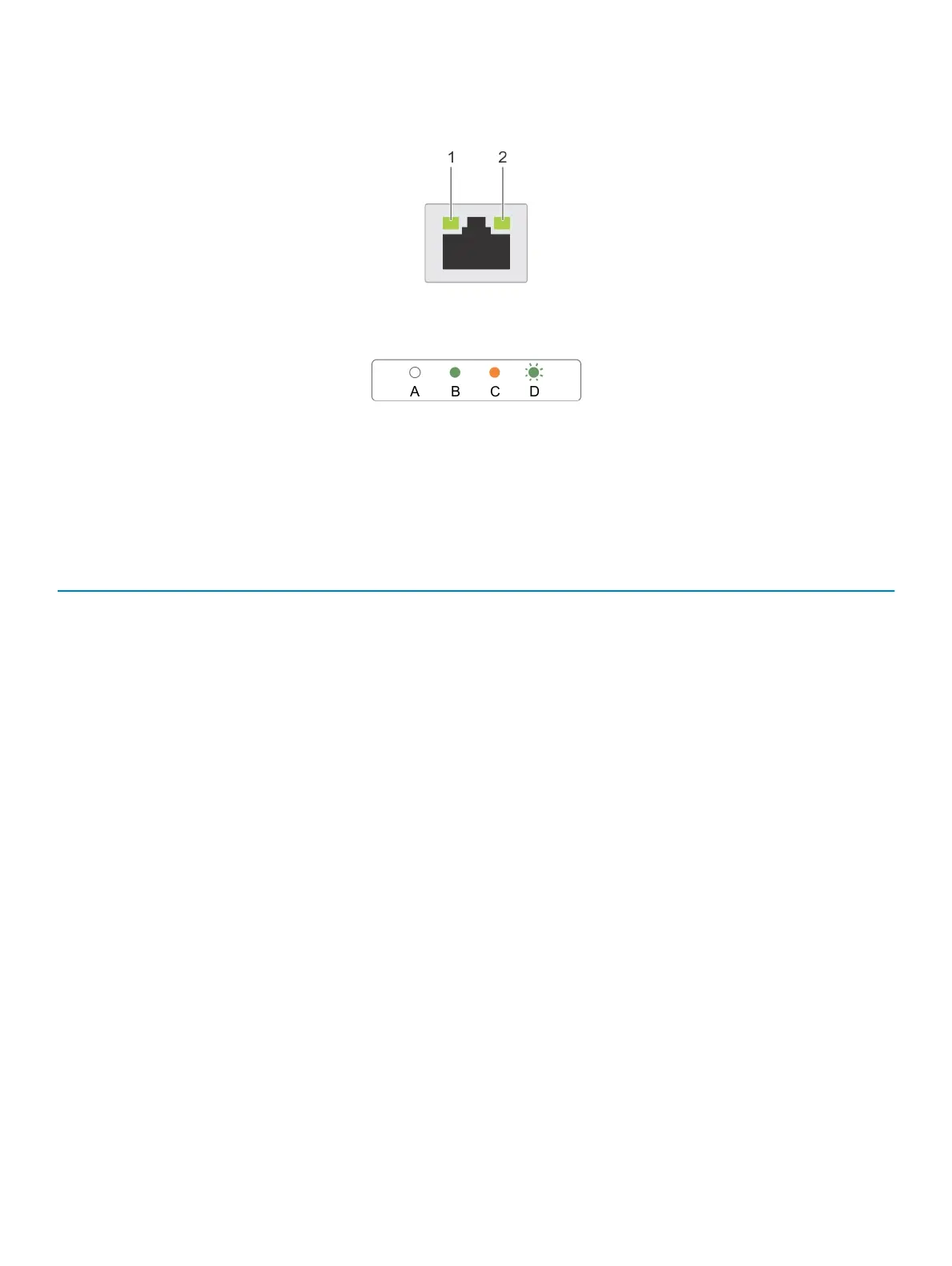

Figure 6. NIC indicators
1 link indicator 2 activity indicator
Table 8. NIC indicators
Convention Indicators Condition
A Link and activity indicators are o The NIC is not connected to the network.
B Link indicator is green
C Link indicator is amber The NIC is connected to a valid network at less than
its maximum port speed.
D Activity indicator is ashing green Network data is being sent or received.
Indicator codes for redundant power supply unit
Each AC power supply unit (PSU) has an illuminated translucent handle that indicates whether power is present or whether a power fault
has occurred.
