Hot swappable hard drive indicator codes

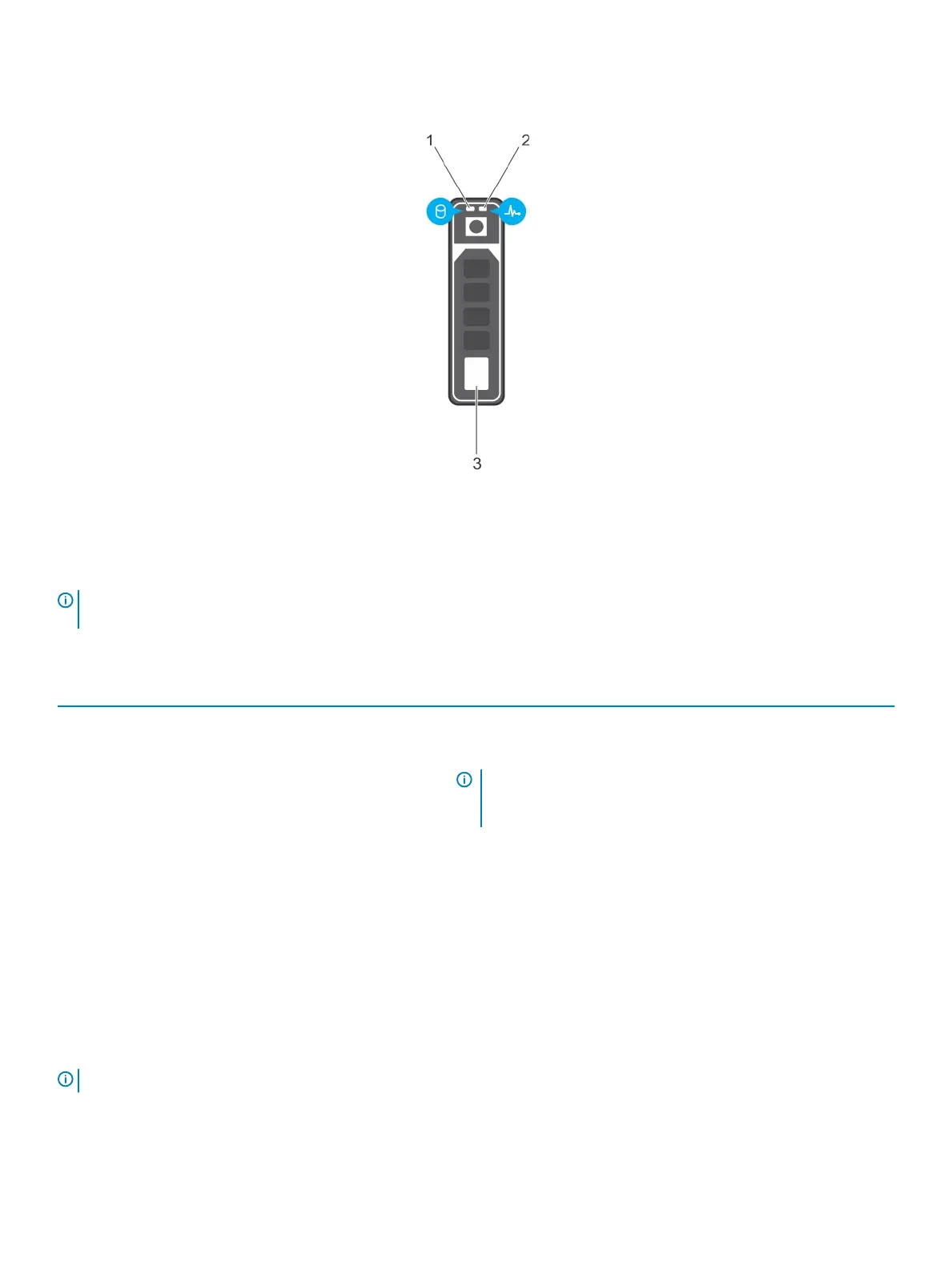

Figure 4. Hot swappable hard drive indicators
1
hard drive activity indicator 2 hard drive status indicator
3 hard drive
NOTE: If the hard drive is in Advanced Host Controller Interface (AHCI) mode, the status indicator (on the right side) does not
function and remains OFF.
Table 5. Hot swappable hard drive indicators
Drive-status indicator pattern (RAID only) Condition
Flashes green two times per second Identifying drive or preparing for removal.
OFF Drive ready for insertion or removal.
NOTE: The drive status indicator remains OFF until all hard
drives are initialized after the system is turned on. Drives are
not ready for insertion or removal during this time.
Flashes green, amber, and turns o Predicted drive failure
Flashes amber four times per second Drive failed
Flashes green slowly Drive rebuilding
Turns green Drive online
Flashes green three seconds, amber three seconds, and turns
o six seconds
Rebuild stopped
iDRAC Direct LED indicator codes
NOTE
: The iDRAC Direct LED indicator does not turn on when the USB port is used in the USB mode.
12 About your system
