Dell EMC PowerEdge MX7000 Service Manual

Product overview
The PowerEdge MX7000 enclosure replaces the M1000e chassis. The enclosure is designed for compute and storage sleds
which are front mounted and vertically oriented. The MX7000 enclosure supports 8 single-width or 4 double-width front-loading
sleds, 6 hot-swap front-loading power supplies, 3 I/O fabrics, 5 rear and 4 front accessible hot-swap cooling fans, and has a
front panel with an optional LCD panel.

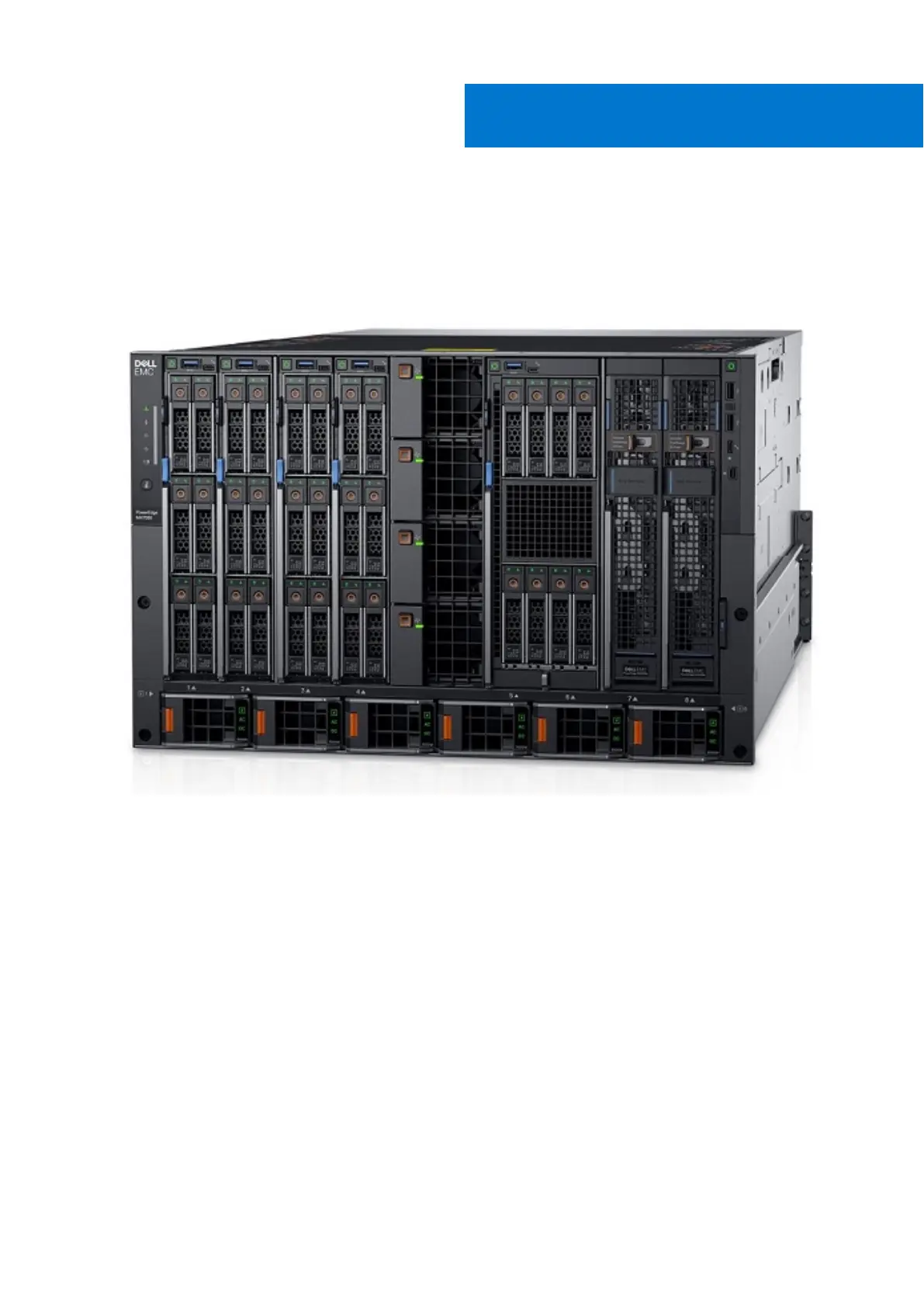

Figure 1. PowerEdge MX7000 enclosure chassis
Topics:
• PowerEdge MX architecture overview
• Product features
• Product comparison
PowerEdge MX architecture overview
The PowerEdge MX portfolio delivers a fully managed, high-performance system that frees up valuable IT resources and
personnel so you can focus on innovation. It enables you to work beyond silos and routine, daily, and time consuming operational
management to realize your IT and digital business transformations. With the kinetic architecture and Agile management, the
MX portfolio dynamically configures compute, storage, and fabric, increases team effectiveness and accelerates operations.
The responsive design delivers the innovation and longevity customers of all sizes need for their IT and digital business
transformations.
The PowerEdge MX infrastructure provides:
Flexible architecture
1
Product overview 5

Dell EMC PowerEdge MX7000 Specifications

General

Form Factor	Modular Enclosure
Power Supplies	Up to 6 hot-plug power supply units (PSUs)
Management	Dell EMC OpenManage Enterprise Modular Edition
Enclosure Type	Modular Enclosure
Number of Slots	8 slots
Maximum Number of Compute Sleds	8
Maximum Number of Storage Sleds	8
Maximum Number of Fabric Switching Modules	8
Management Module Slots	2
