Dell EMC PowerEdge MX7000 Service Manual

Right control panel

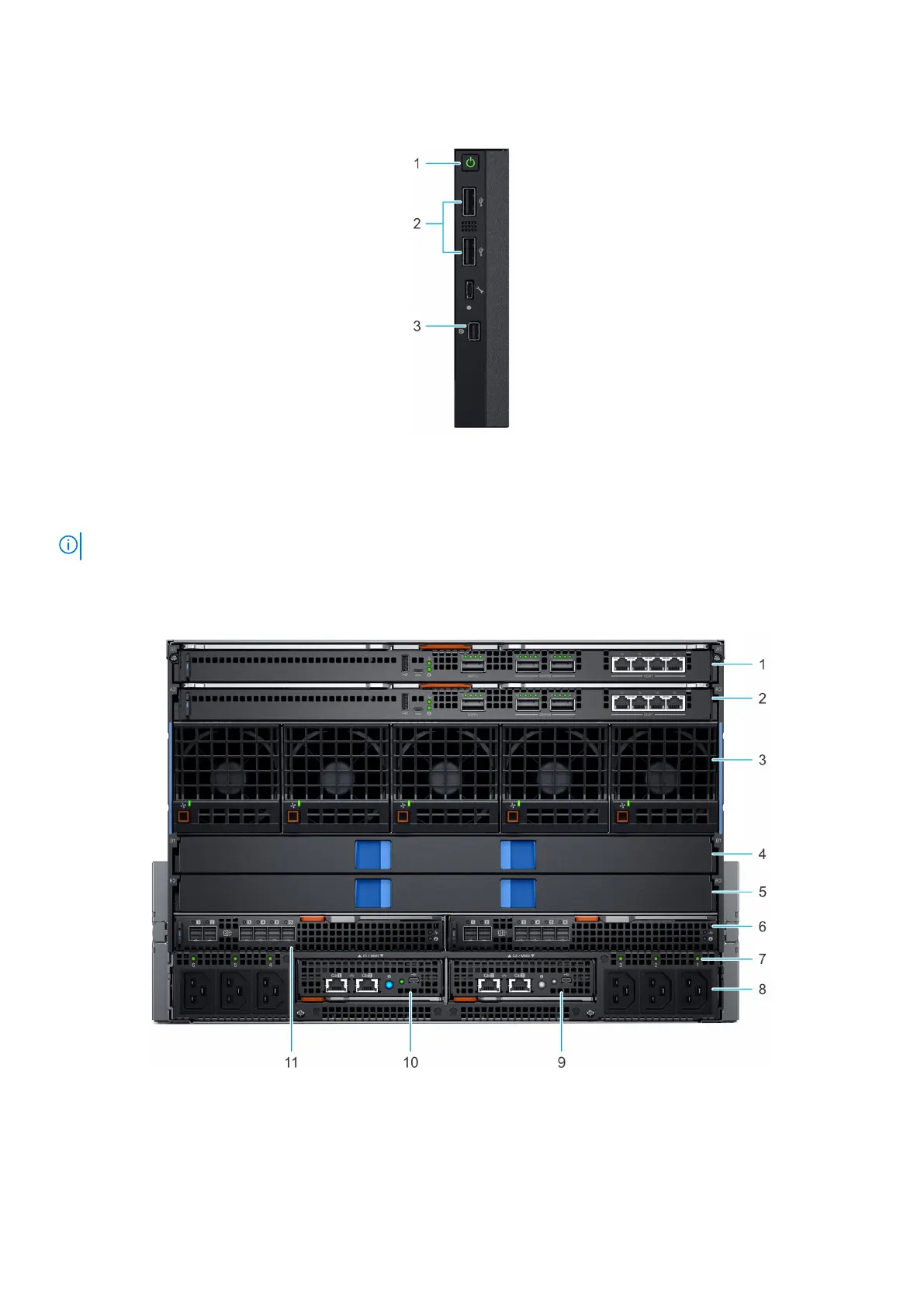

Figure 5. Right control panel
1. Power button 2. USB 2.0 port (2)
3. iDRAC Direct port (Micro-AB USB) 4. Mini DisplayPort
NOTE: For more information on the ports, see Technical specifications.
Back view of the enclosure
Figure 6. Back view of the enclosure
1.
Slot for Fabric A1 2. Slot for Fabric A2
3. Rear fans (5) 4. Slot for Fabric B1
5. Slot for Fabric B2 6. Slot for Fabric C2
7. Power cable connection status LED 8. C22 Power inlet connectors (6)
12 Field service information

Dell EMC PowerEdge MX7000 Specifications

General

Form Factor	Modular Enclosure
Power Supplies	Up to 6 hot-plug power supply units (PSUs)
Management	Dell EMC OpenManage Enterprise Modular Edition
Enclosure Type	Modular Enclosure
Number of Slots	8 slots
Maximum Number of Compute Sleds	8
Maximum Number of Storage Sleds	8
Maximum Number of Fabric Switching Modules	8
Management Module Slots	2
