Dell EMC PowerEdge MX7000 Service Manual

● Up to eight standard height, single-width sleds, or four standard height, double-width sleds.
Up to seven Storage sleds can be populated in the enclosure.
NOTE: One compute node must be present and it must be mapped to a storage node.
● Up to six hot swappable power supply units.
● Up to two hot swappable management modules.
● Up to six I/O modules:
○ Four Fabric-A/B type IOMs
○ Two Fabric-C type IOMs
● Four front accessible hot swappable cooling fans.
● Five rear accessible hot swappable cooling fans.
For more information about dual management modules, see Technical specifications.
Front view of the enclosure

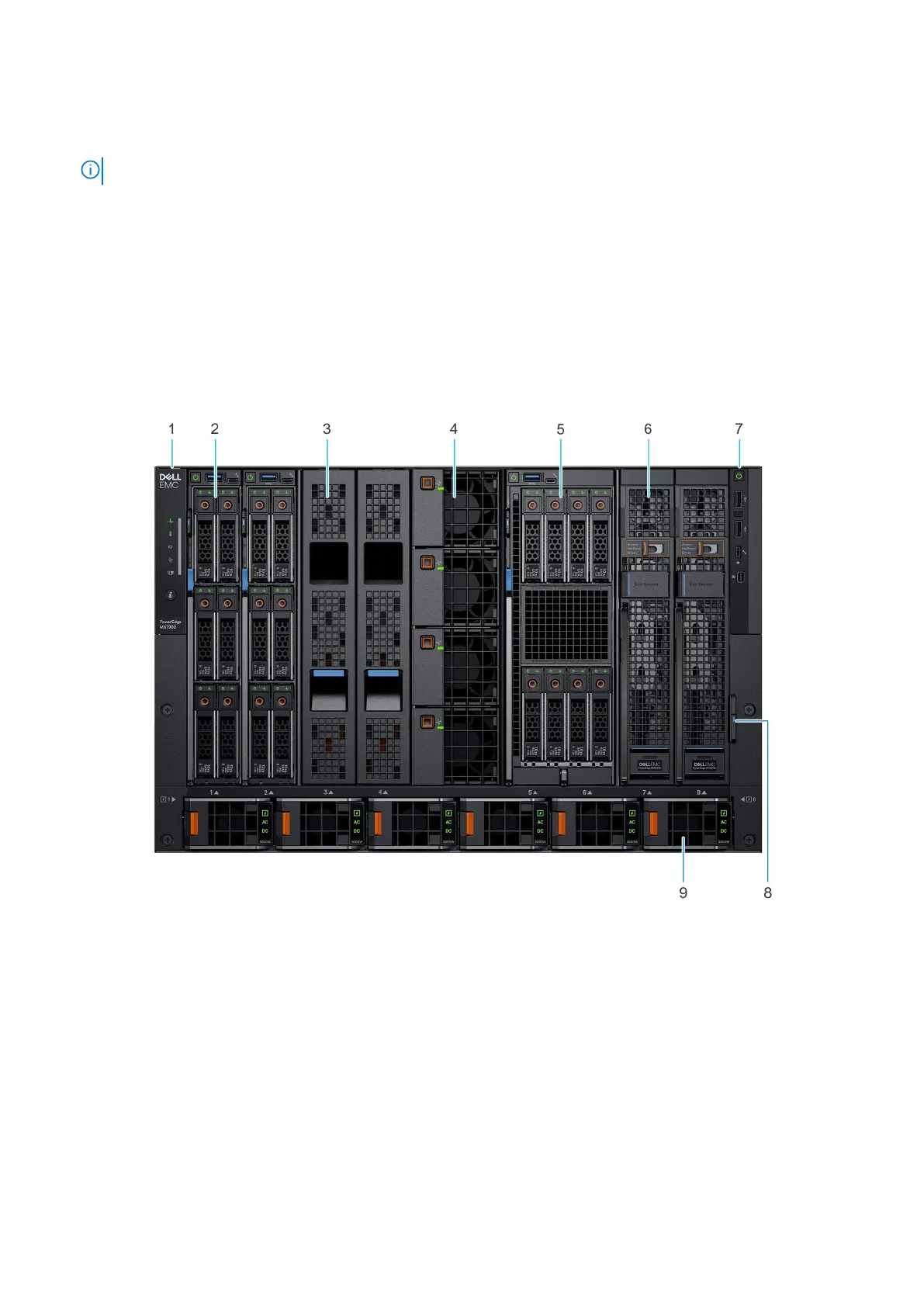

Figure 2. Front view of the enclosure
1.
Left control panel 2. Single-width compute sled
3. Sled blank 4. Front fan (4)
5. Double-width compute sled 6. Single-width storage sled
7. Right control panel 8. Information tag
9. Power supply unit (6)
Field service information 9

Dell EMC PowerEdge MX7000 Specifications

General

Form Factor	Modular Enclosure
Power Supplies	Up to 6 hot-plug power supply units (PSUs)
Management	Dell EMC OpenManage Enterprise Modular Edition
Enclosure Type	Modular Enclosure
Number of Slots	8 slots
Maximum Number of Compute Sleds	8
Maximum Number of Storage Sleds	8
Maximum Number of Fabric Switching Modules	8
Management Module Slots	2
