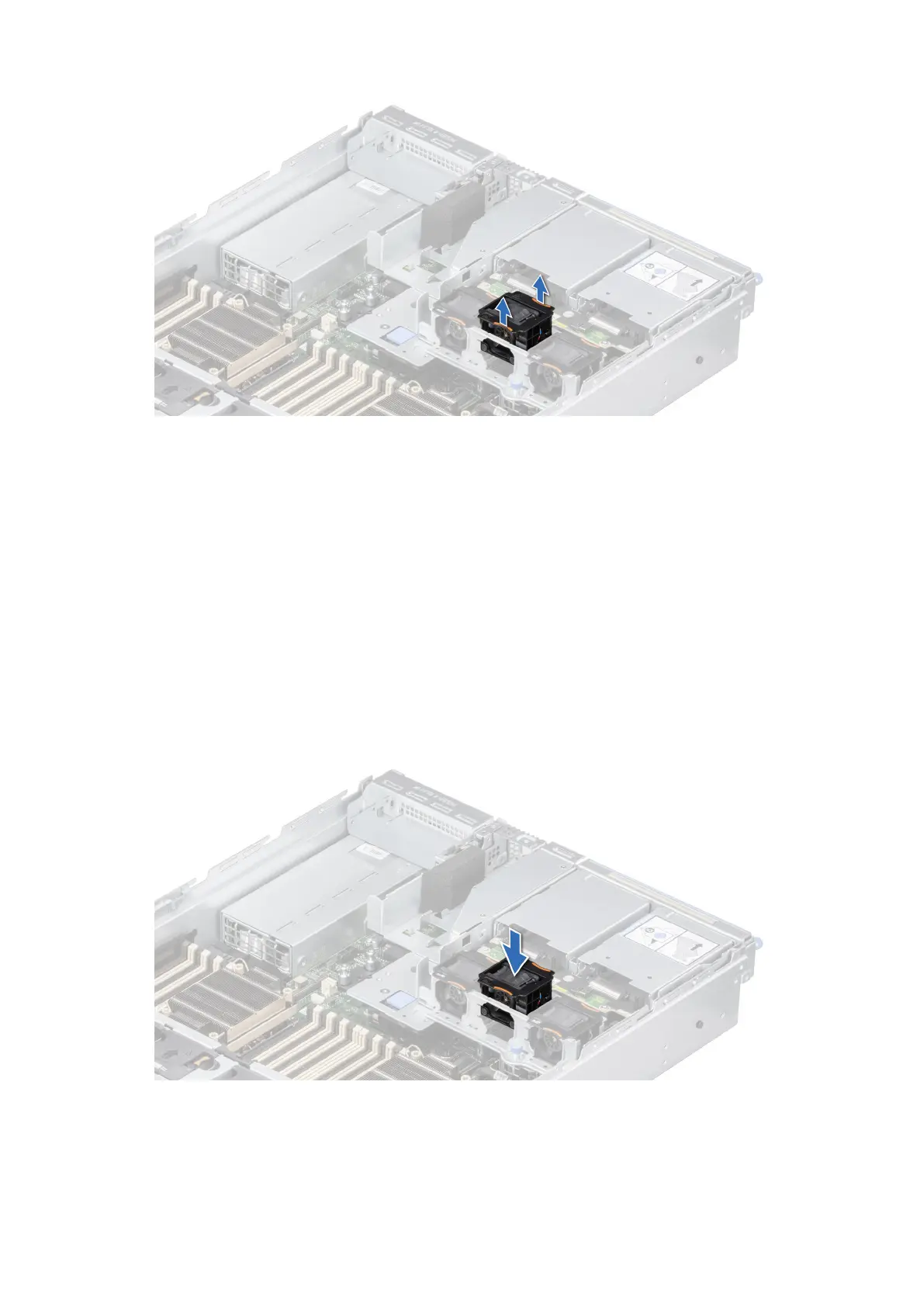

Figure 74. Removing a rear drive module cooling fan
Next steps
1. Replace a rear drive module cooling fan.
Installing a rear drive module cooling fan
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the rear drive module air shroud.
Steps
Align and slide the rear drive module cooling fan into the rear drive module until the fan clicks into place.
Figure 75. Installing a rear drive module cooling fan
76
Installing and removing system components
