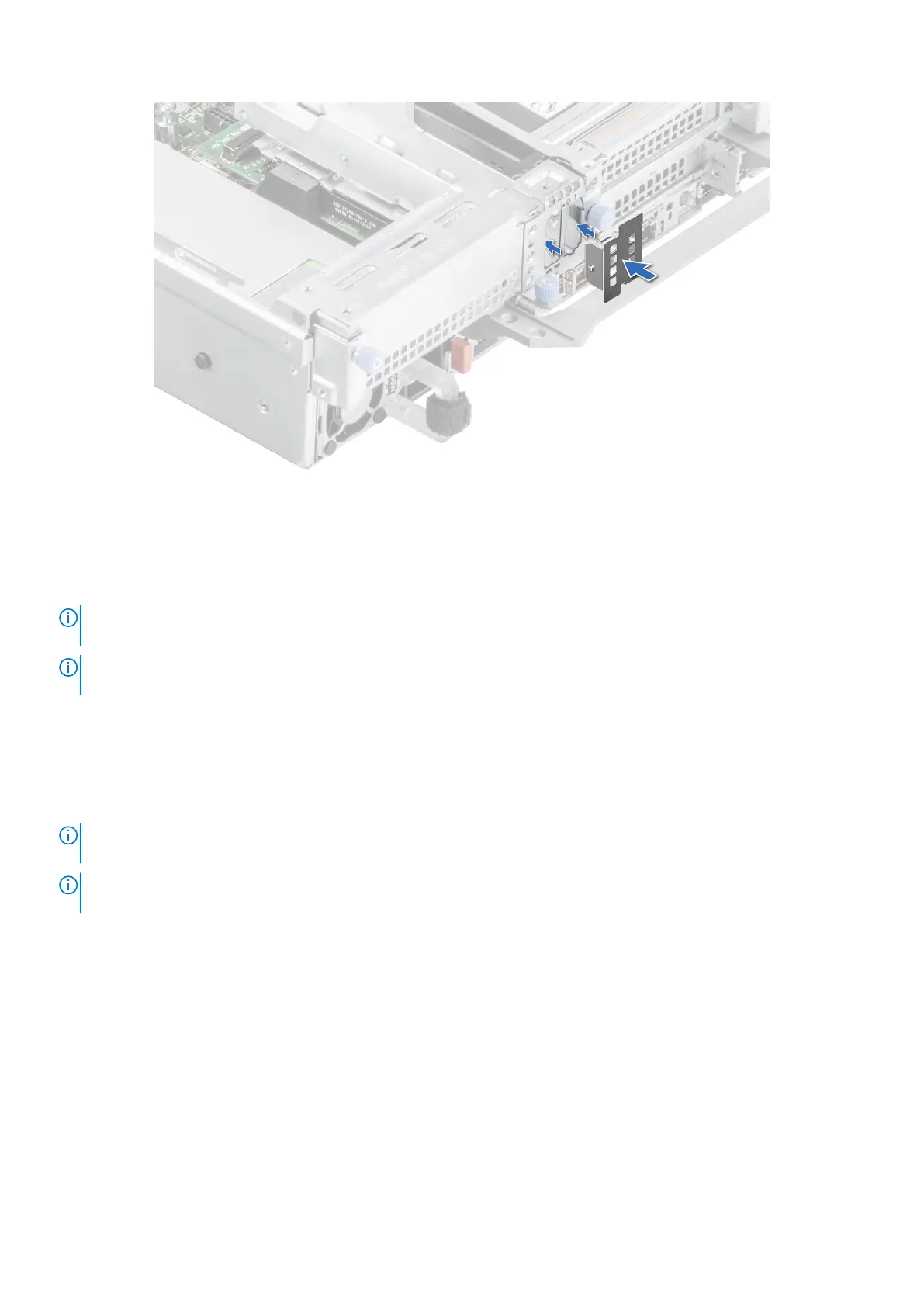

Figure 148. Installing the BOSS blank
To install the BOSS S2 controller card module:
1. Install the BOSS S2 controller card. To install the BOSS S2 controller card, see installing the BOSS S2 controller card module
steps 1 to 4.
2. Install the M.2 SSD. To install the M.2 SSD, see installing the BOSS S2 controller card module steps 5 to 9.
NOTE:
Installing the BOSS S2 card carrier does not require the system to be powered off. System shutdown is only
required when installing the BOSS S2 controller card module.
NOTE: Connect the BOSS signal cable and BOSS power cable after inserting the BOSS S2 controller card module into the
system.
To remove the BOSS S2 controller card module:
1. Power off the system and remove the system cover.
2. Remove the M.2 SSD. To remove the M.2 SSD, see removing the BOSS S2 controller card module steps 1 to 4.
3. Remove the BOSS S2 controller card module. To remove the BOSS S2 controller card module, see removing the BOSS S2
controller card module steps 5 to 6.
4. Install the BOSS blank
NOTE:
Removal of the BOSS S2 card carrier does not require the system to be powered off. System shutdown is only
required when removing the BOSS S2 controller card module.
NOTE: Disconnect the BOSS signal cable and the BOSS power cable before lifting the controller card module from the
system.
Upgrade Kits 171
