A Back Panel view of the chassis is given here with a table that lists the parts and devices available in the CMC.

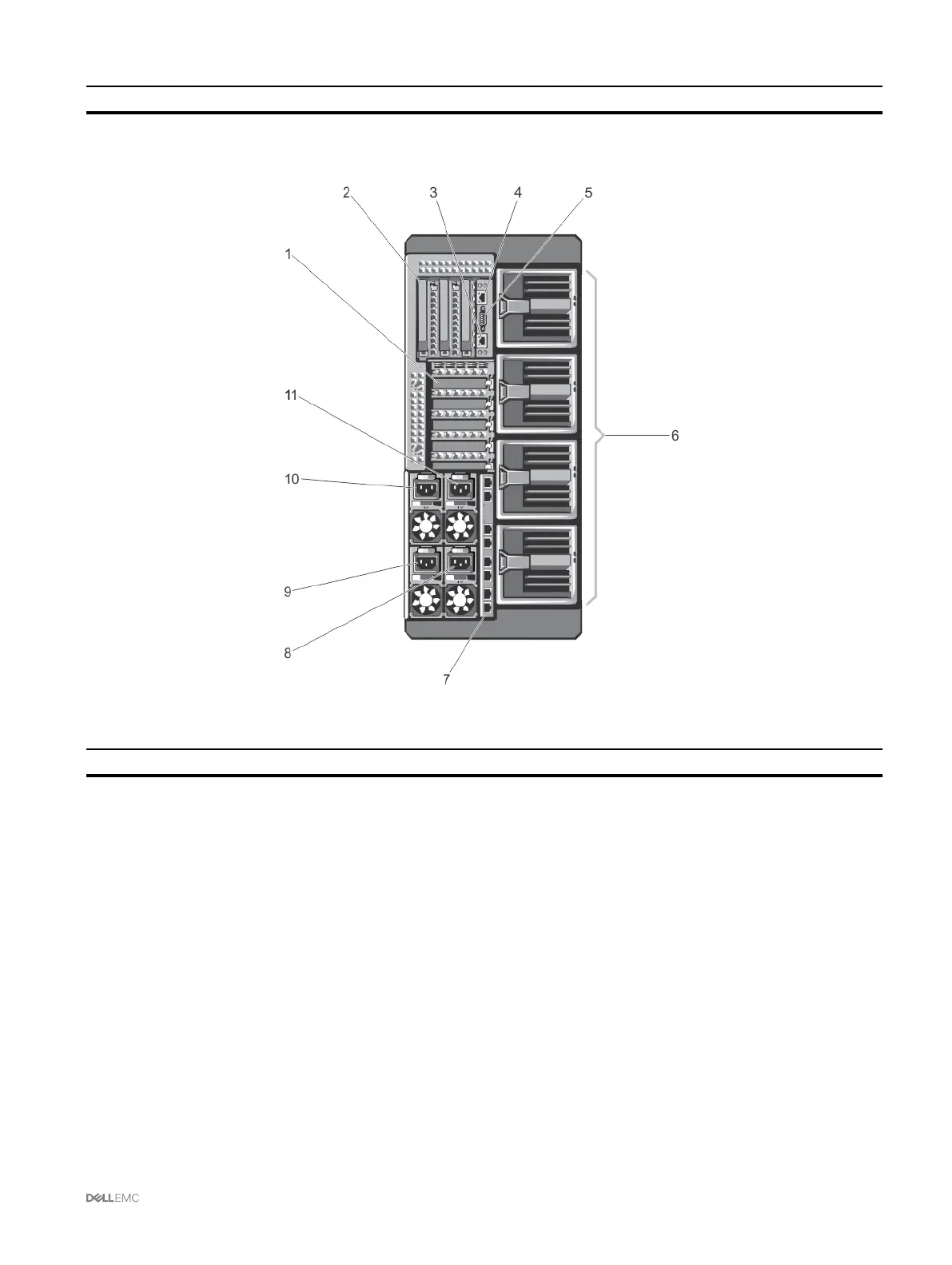

Figure 2. CMC back panel
Table 2. CMC back panel — parts
Item Indicator, Button, or Connector
1 PCIe expansion card slots low-prole (5)
2 PCIe expansion card slots full height (3)
3 CMC GB Ethernet port (CMC-2)
4 CMC GB Ethernet port (CMC-1)
5 Serial Connector
6 Blower modules (4)
7 I/O module ports
8 PSU 4
9 PSU 3
10 PSU 1
11 PSU 2
A Front Panel view of the chassis is given here with a table that lists the parts and devices available in the CMC.
