Steps

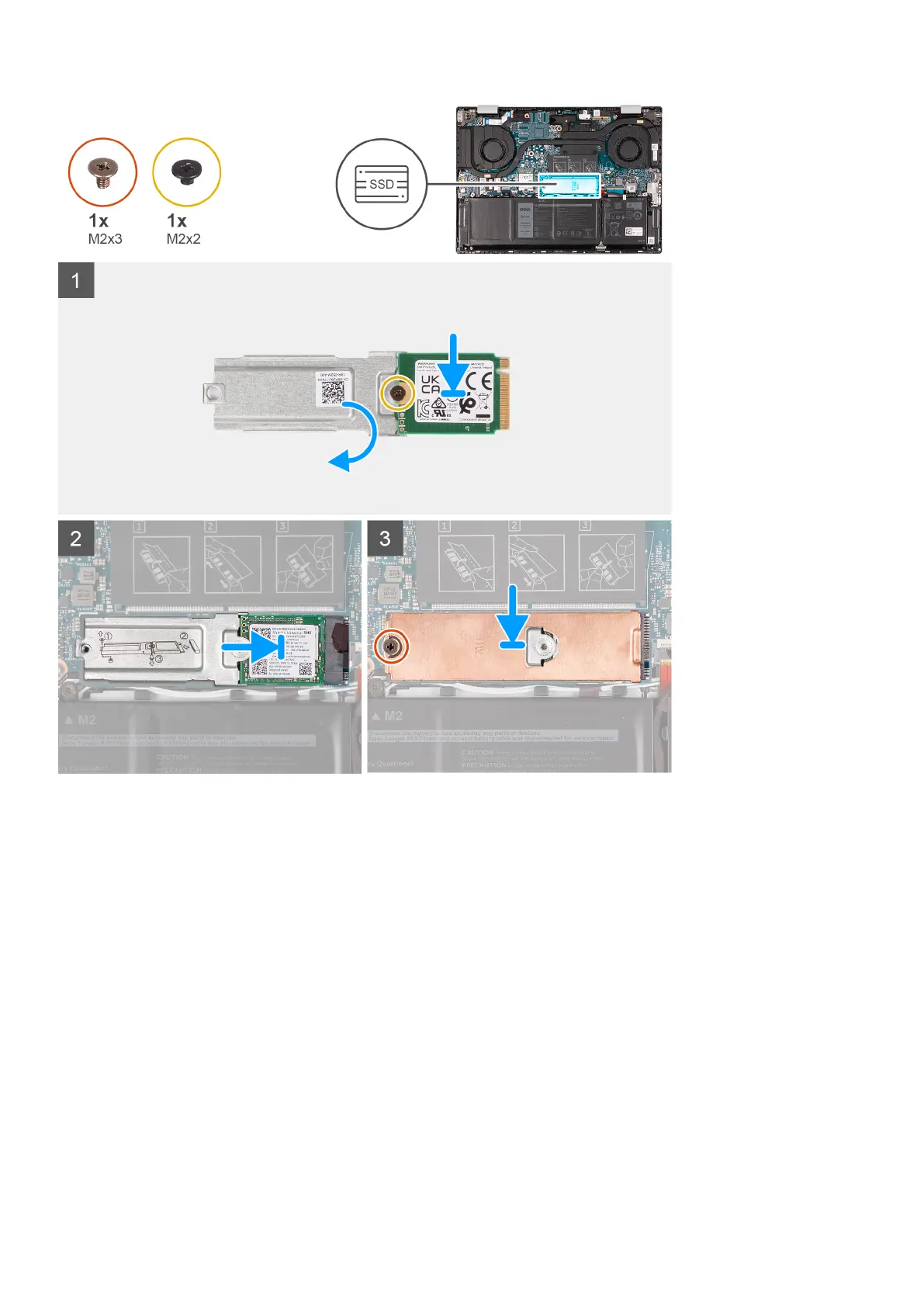

1. Align the notch on the M.2 2230 solid-state drive with the screw (M2x2) on the M.2 2230 solid-state drive bracket.
2. Tighten the screw (M2x2) that secures the M.2 2230 solid-state drive to the M.2 2230 solid-state drive bracket.
3. Turn over the M.2 2230 solid-state drive bracket.
4. Slide the M.2 2230 solid-state drive bracket into the M.2 card slot on the system board.
5. Place the M.2 thermal shield on the M.2 2230 solid-state drive bracket.
6. Replace the screw (M2x3) that secures the M.2 thermal shield to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
Removing and installing components
21
