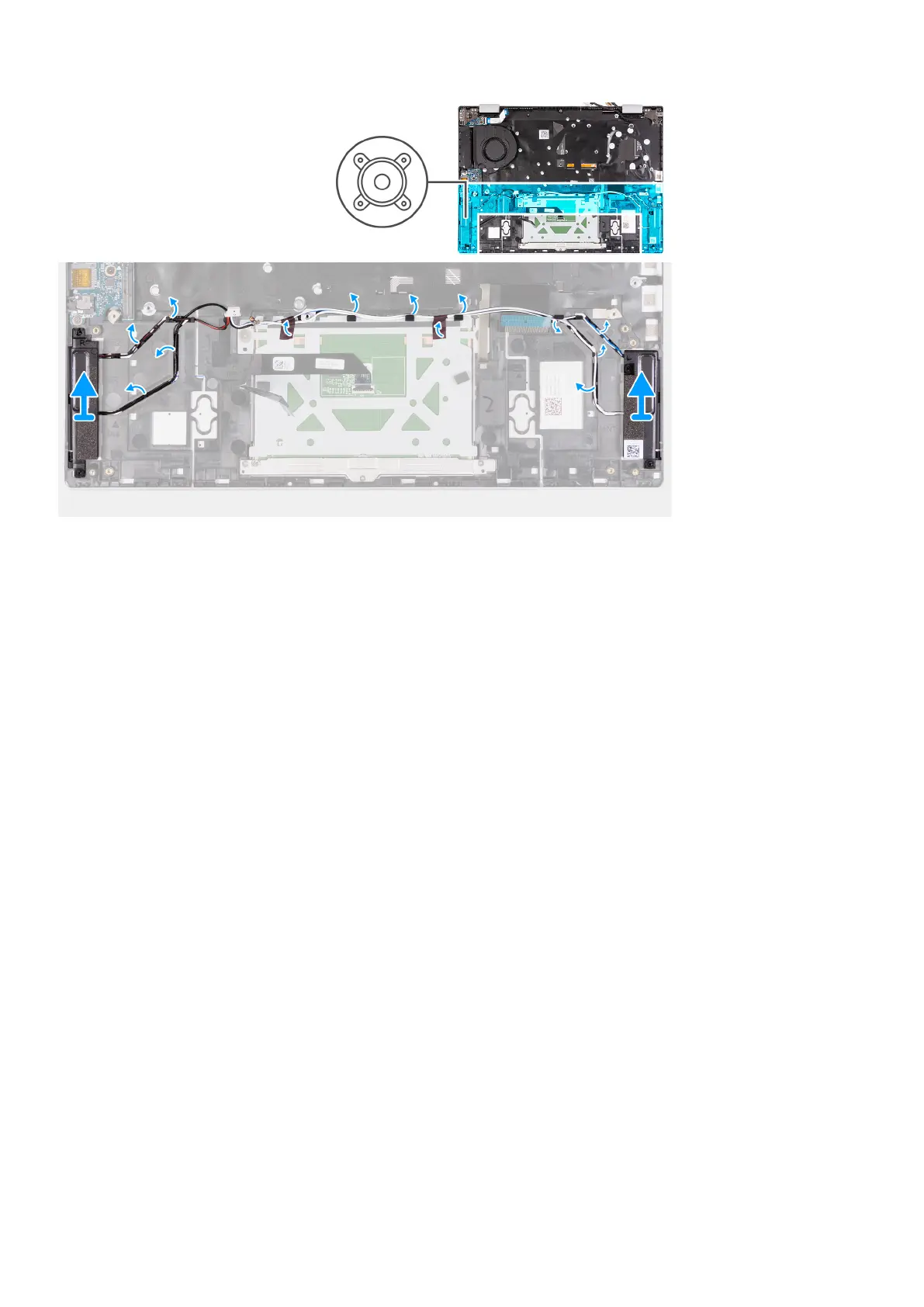

Steps
1. Peel off the tapes that secure the antenna cables to the palm-rest and keyboard assembly.
2. Lift the antenna cables and move them out of the way.
3. Peel off the tape that secures the speaker cable to the palm-rest and keyboard assembly.
4. Remove the speaker cables from the routing guides on the palm-rest and keyboard assembly.
5. Lift the speakers along with their cables off the palm-rest and keyboard assembly.
Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the speakers and provides a visual representation of the installation procedure.
50
Removing and installing components
