10. Remove the power-button board.
11. Remove the power button with optional fingerprint reader.
12. Remove the system board.
13. Remove the speakers.
About this task
The following image(s) indicate the location of the palm-rest and keyboard assembly and provides a visual representation of the
removal procedure.
Steps

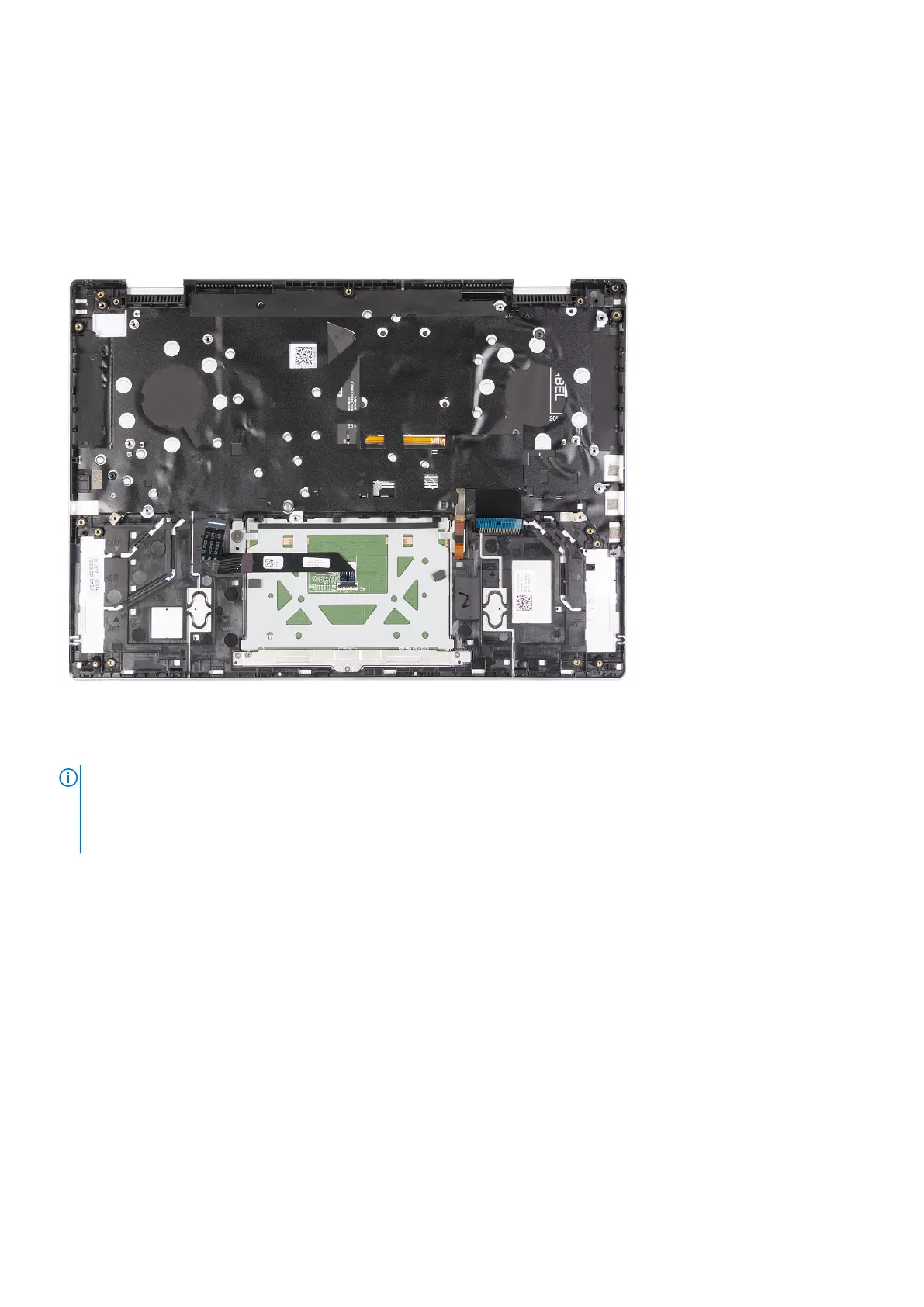

After performing the steps in Prerequisites, you are left with the palm-rest and keyboard assembly.
NOTE:
The palm-rest and keyboard assembly consists of the following:
● Palm-rest
● Keyboard
● Touchpad
Installing the palm-rest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the palm-rest and keyboard assembly and provides a visual representation of the
installation procedure.
52
Removing and installing components
