About this task

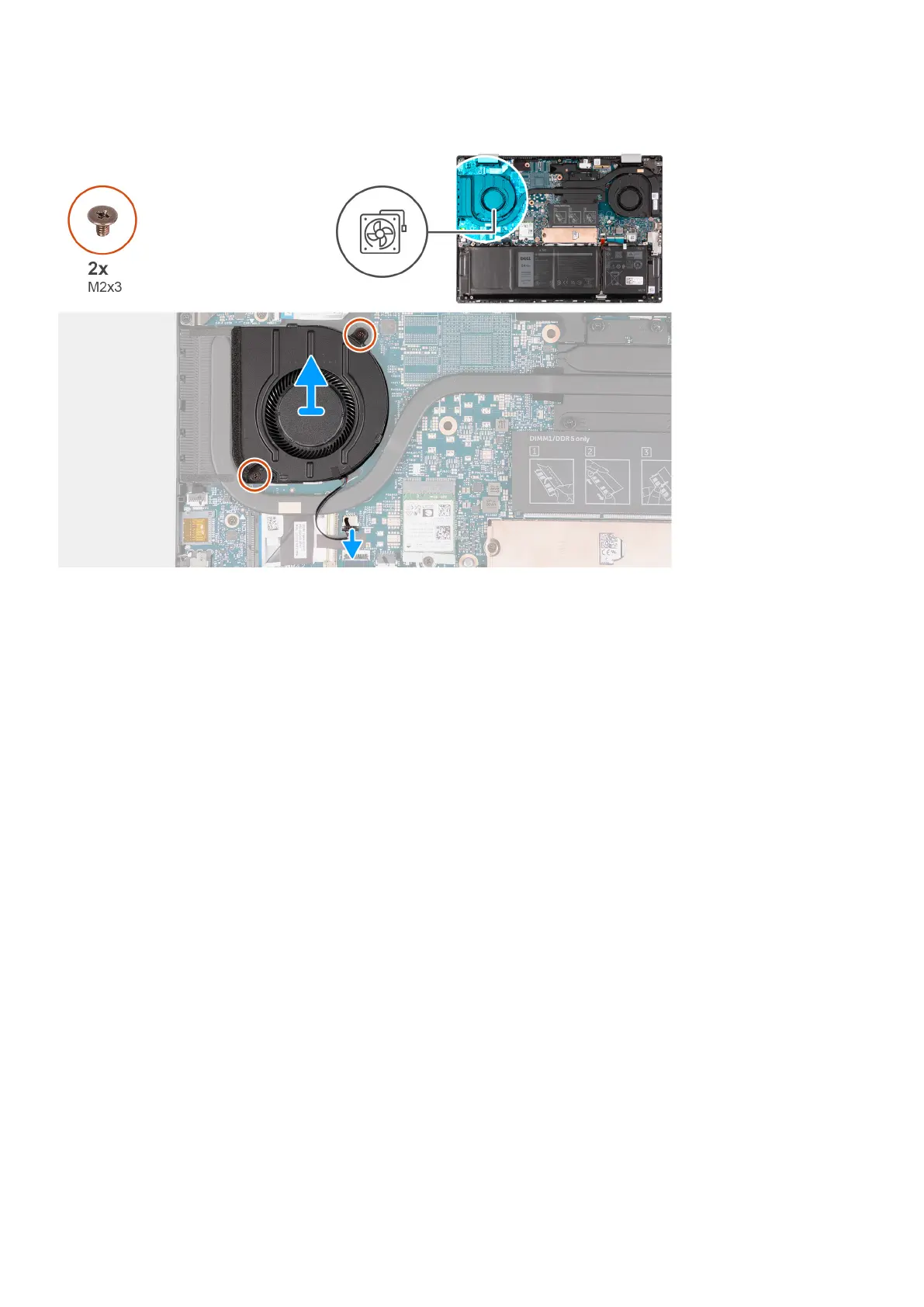

The following image(s) indicate the location of the left fan and provides a visual representation of the removal procedure.
Steps
1. Disconnect the left fan cable from the system board.
2. Remove the two screws (M2x3) that secure the left fan to the palm-rest and keyboard assembly.
3. Lift the left fan off the palm-rest and keyboard assembly.
Installing the left fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the left fan and provides a visual representation of the installation procedure.
Removing and installing components
35
