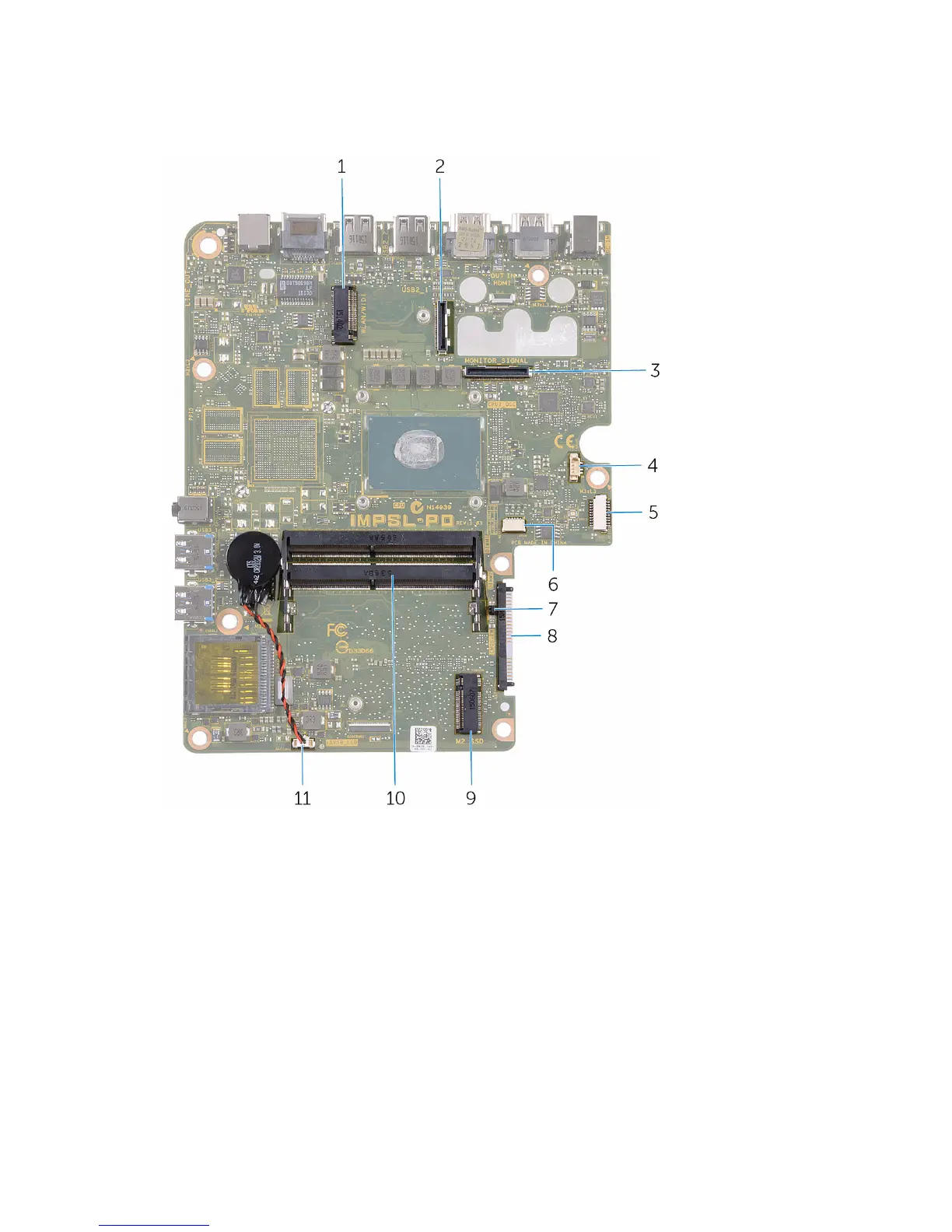

System board components
1 wireless-card slot 2 display-cable connector
3 I/O-cable connector 4 fan-cable connector
5 USB-board cable connector 6 speaker-cable connector
7 CMOS and password jumpers 8 hard-drive connector
9 mSATA-card slot 10 memory-module slots (2)
11 coin-cell battery cable
connector
