5 Rotate and remove the camera from the camera bracket.

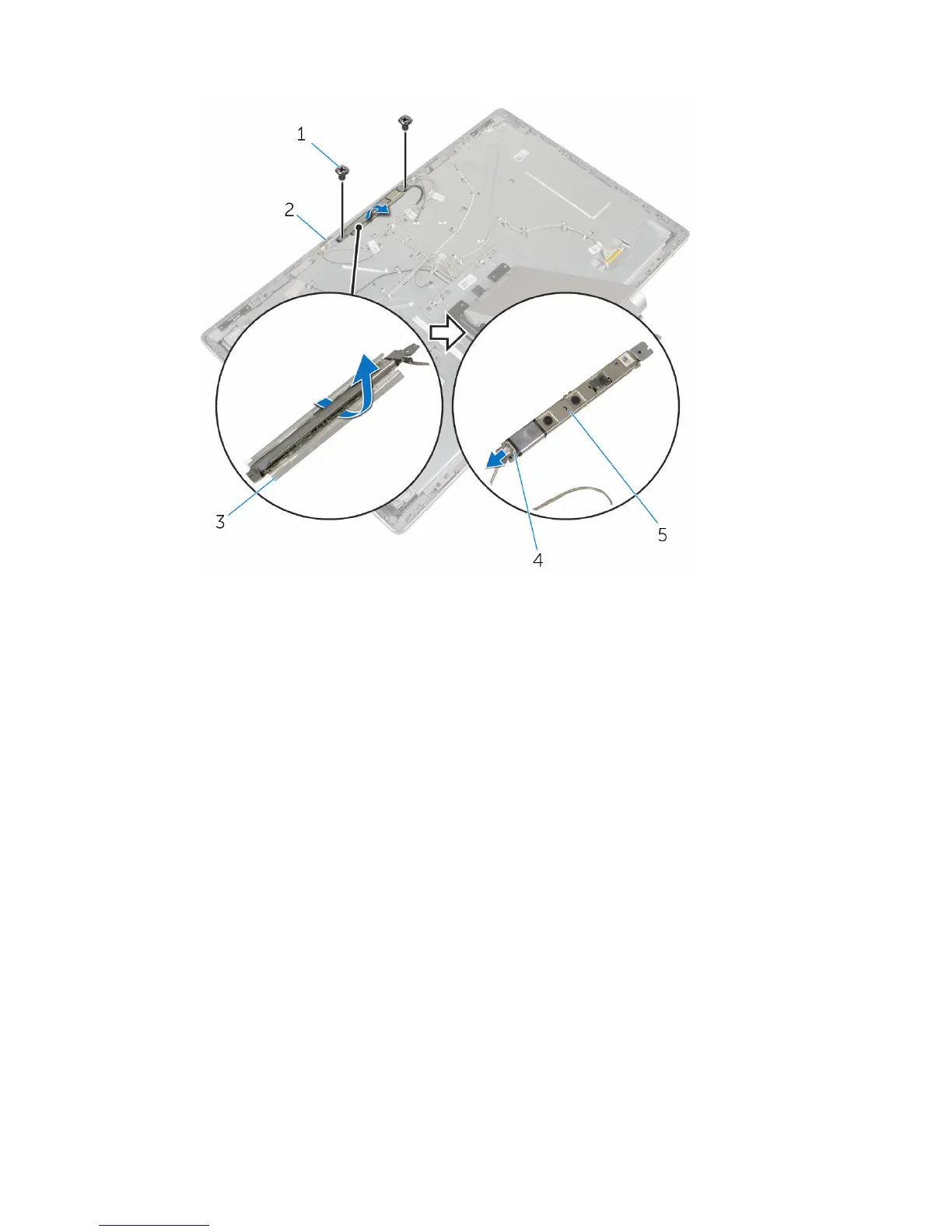

1 screws (2) 2 display bezel
3 camera bracket 4 camera cable
5 camera
Procedure for removing the 2D camera
1 Disconnect the camera cable from the camera.
2 Remove the screws that secure the camera assembly to the display bezel.
3 Carefully lift the camera assembly and turn it over.
64
