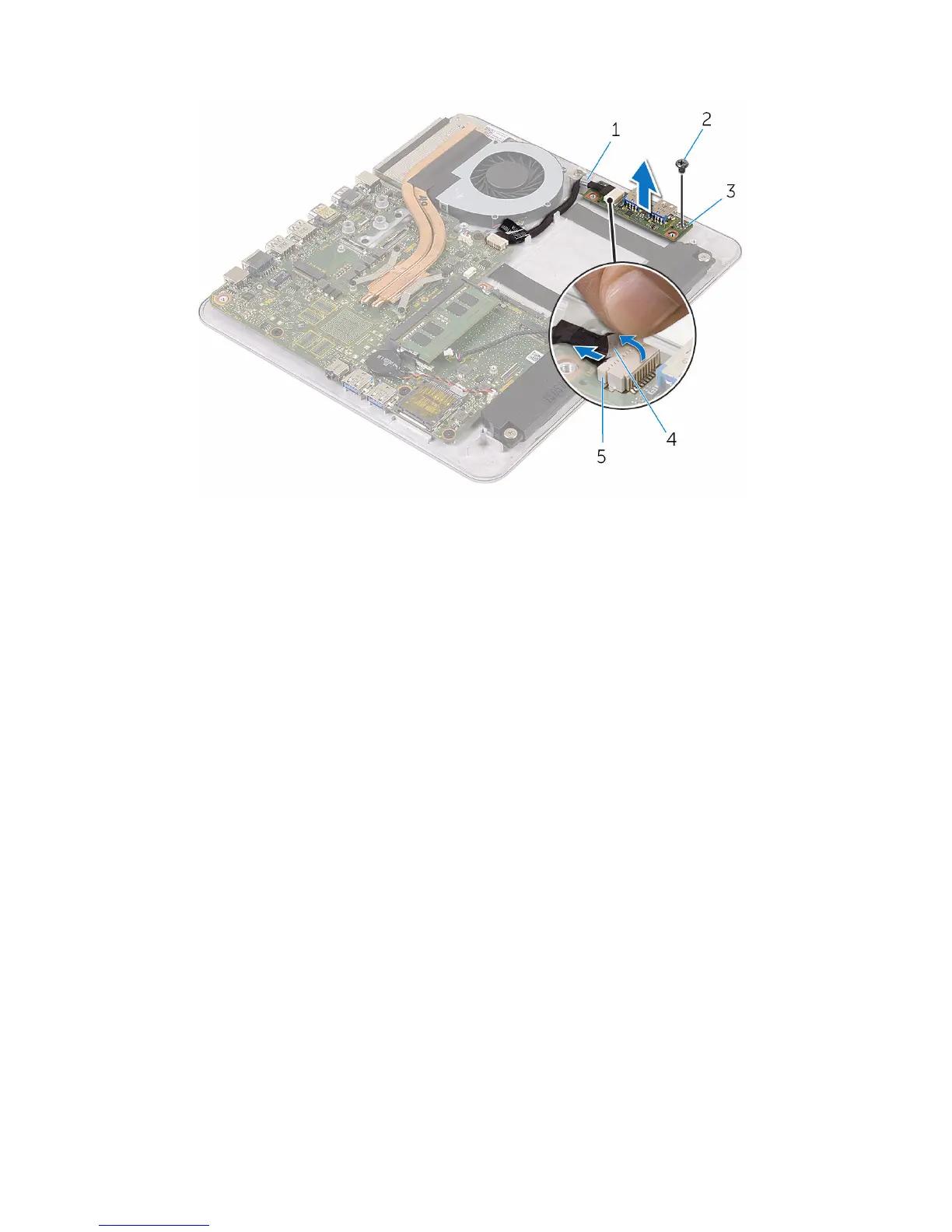

4 Lift the USB board off the computer base.

1 routing clip 2 screw

3 USB board 4 tape

5 USB-board cable
