Dell Latitude 3189 - Power connector port removal and installation

Power connector port
Removing power connector port
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a microSD card
b base cover
c battery

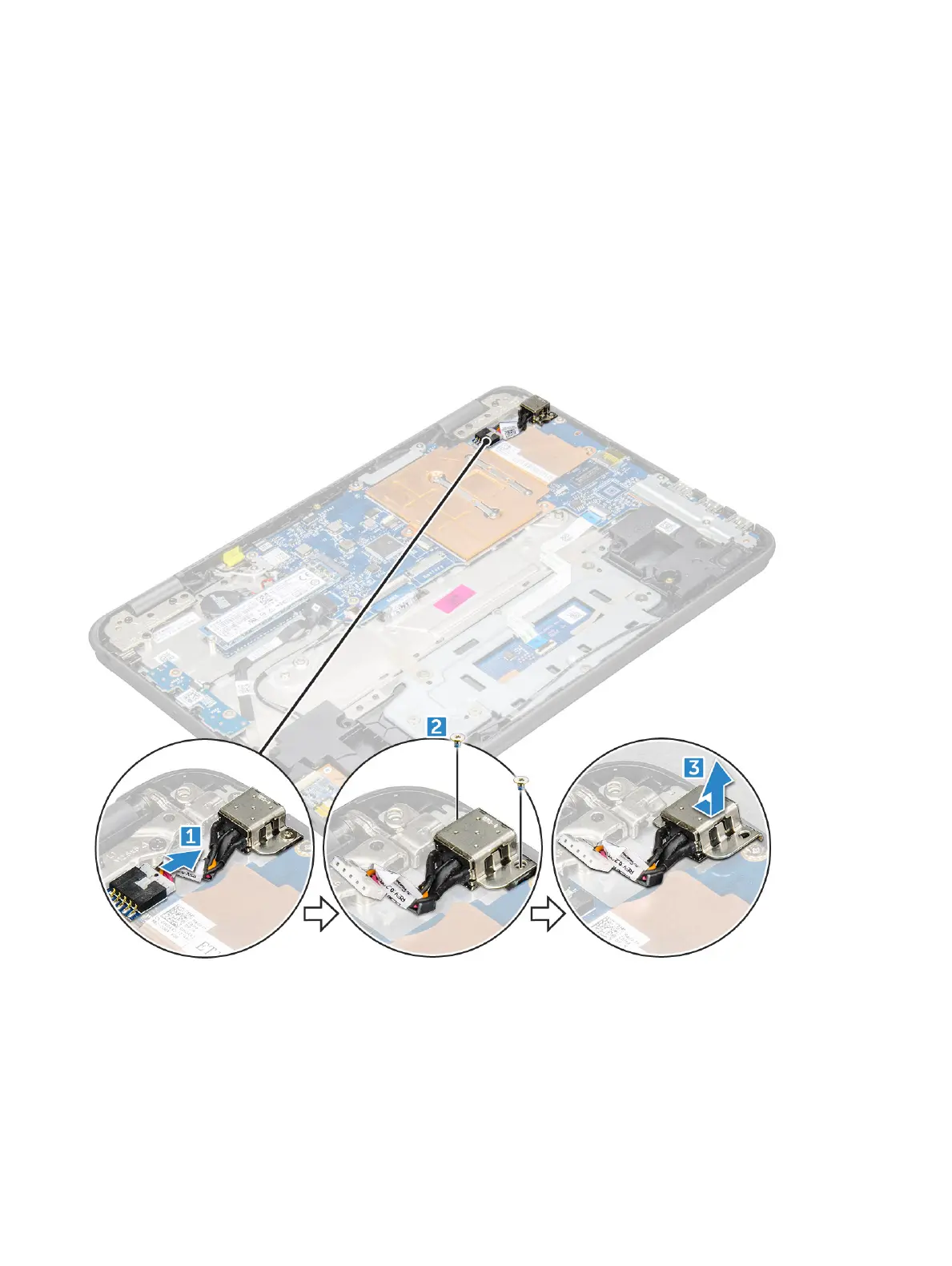

3 To remove the power connector port:
a Disconnect the power connector cable from the connector on the system board [1].
b Remove the M.2.0x3.0 screws that secure the power connector port on the computer [2].
c Slide and lift the power connector port away from the computer [3].
Installing power connector port
1 Insert the power connector port into the slot on the computer.
2 Replace the M2.0x3.0 screw that secures the power connector port to the computer.
3 Connect the power connector cable to the connector on the system board.
4 Install the:
