Installing display back cover

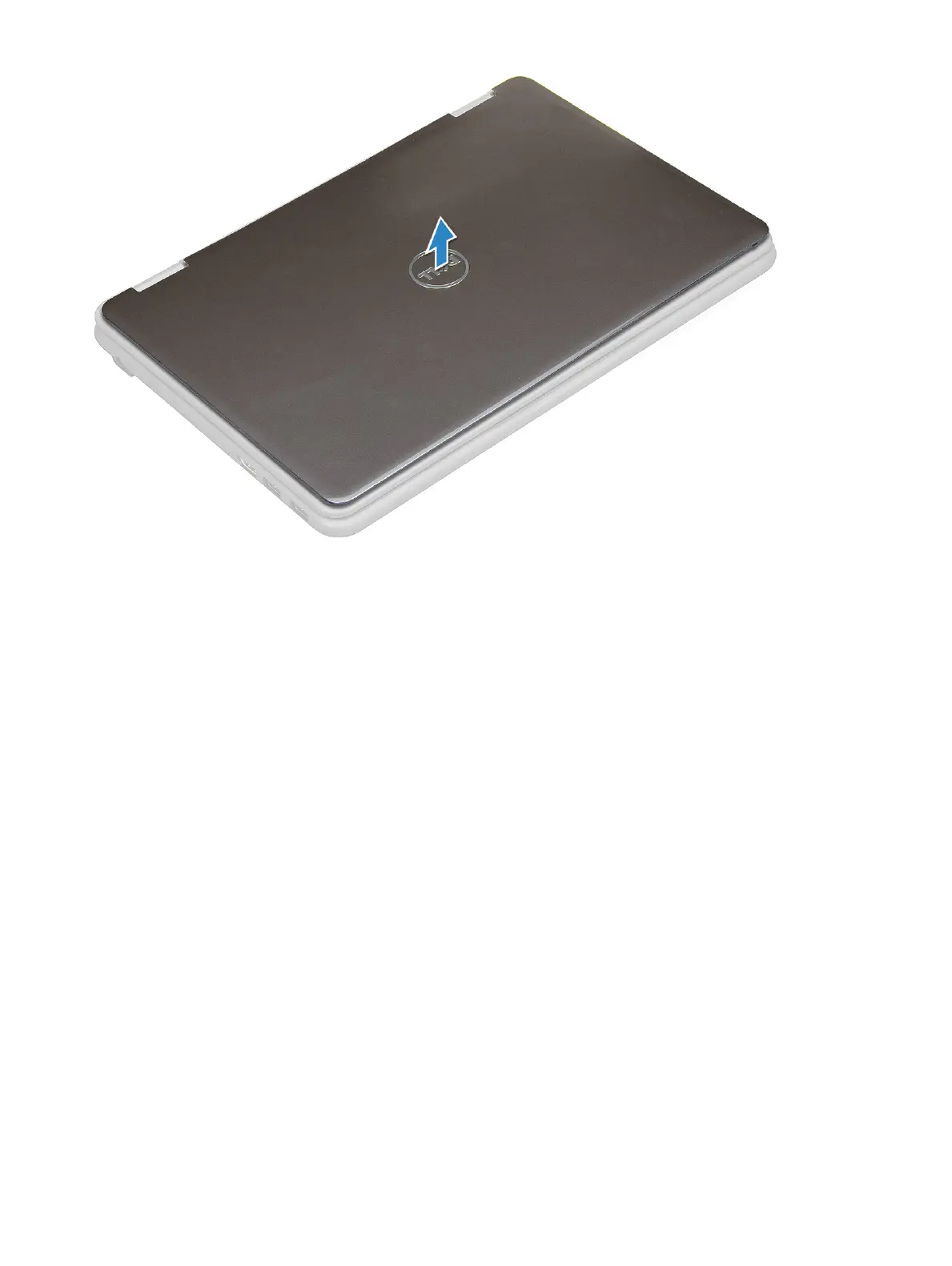

1 Align the display back cover with the tabs on the computer, and press it until it clicks into place.
2 Follow the procedure in After working inside your computer.
System board
Removing system board
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a microSD card
b base cover
c battery
d SSD card
3 Disconnect the following cables:
a sensor cable [1]
b world facing camera cable [2]
c coin cell battery cable [3]
d power board and audio cable [4]
e speaker cable [5]
f keyboard cable [6]
g touch pad cable [7]
h power connector cable [8]
32
