Next steps
1. Reconnect the battery cable.
2. Replace the base cover
3. Replace the SD memory card
4. Follow the procedure in after working inside your computer
Coin-cell battery
Removing the coin cell battery
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD memory card.
3. Remove the base cover.
4. Disconnect the battery cable.
5. Remove the hard drive assembly.
NOTE: Required for systems with 42 Whr battery
6. Remove the IO board.
Steps

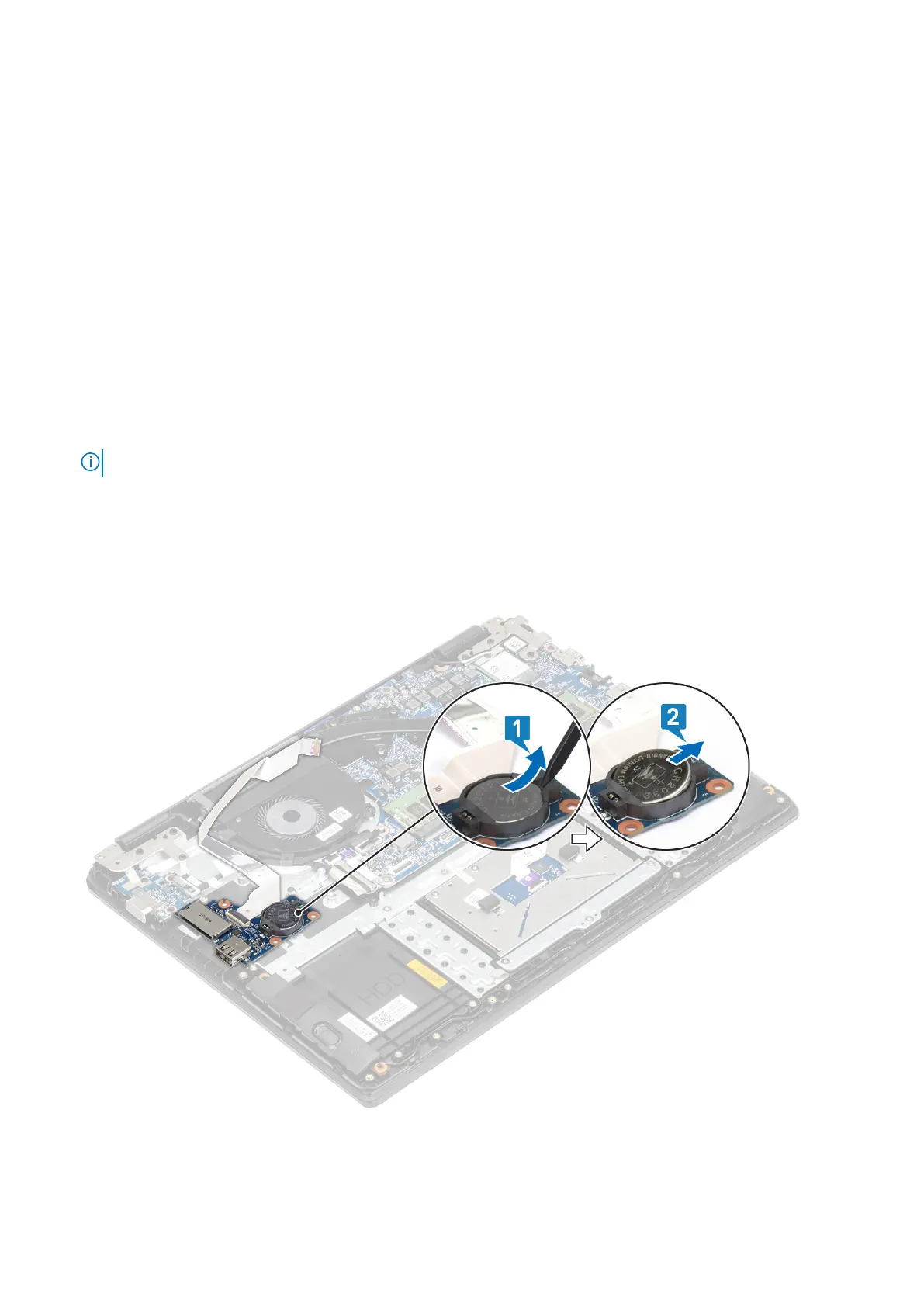

1. Flip the I/O board.
2. Using a plastic scribe, gently pry the coin cell battery out of the slot on the I/O board [1].
3. Remove the coin cell battery away from the computer [2].
30
Removing and installing components
