Next steps
1. Replace the display assembly
2. Replace the WLAN
3. Reconnect the battery
4. Replace the base cover
5. Replace the SD memory card
6. Follow the procedure in after working inside your computer
Display panel
Removing the display panel
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD memory card
3. Remove the base cover
4. Disconnect the battery
5. Remove the WLAN
6. Remove the display assembly
7. Remove the display bezel
Steps

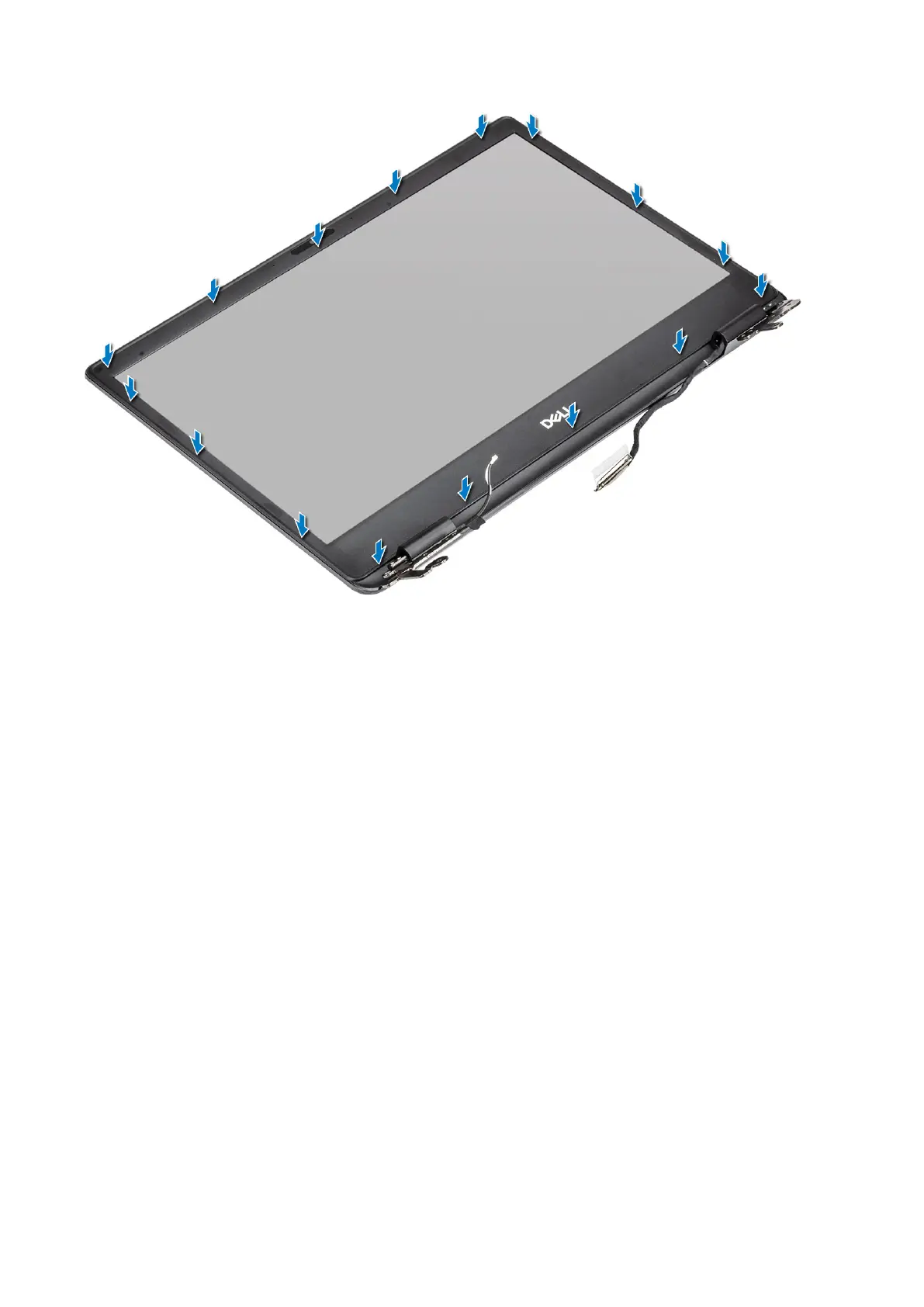

1. Remove the six (M2x2) and two (M2x3) screws that secure the display panel to the display back-cover [1].
2. Lift the display panel and turn it over [2].
96
Removing and installing components
