Dell Latitude 7280 - PCIe Solid State Drive (SSD)

Installing battery

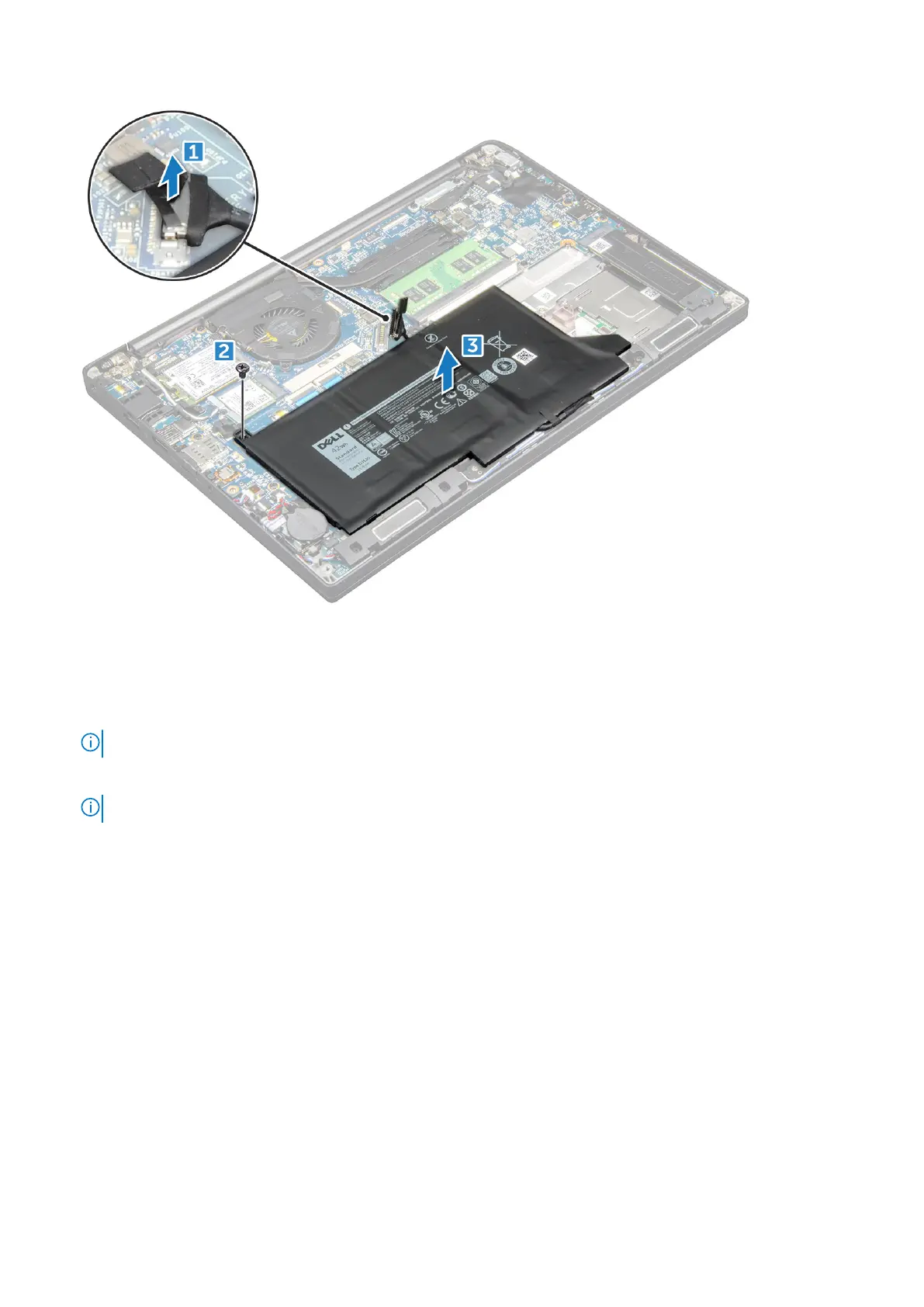

1. Insert the battery into the slot on the computer.
2. Route the battery cable through the routing clip and connect the battery cable to the connector on the system board.
NOTE: Route the battery cable, if the cable at the base of the battery is un routed.
3. Tighten the M2.0 x 5.0 screws to secure the battery to the computer.
NOTE: A small battery (3-cell) has a single screw, a larger battery (4-cell) has two screws.
4. Install the base cover
5. Follow the procedure in After working inside your computer.
PCIe Solid State Drive (SSD)
Removing PCIe SSD
1. Follow the procedure in Before working inside your computer.
2. Disconnect the battery cable from the connector on the system board.
3. To remove the PCIe SSD:
a. Loosen the M2 x3 captive screw that secures the SSD bracket [1].
b. Remove the SSD bracket [2].
c. Remove the PCIe SSD from the connector on the system board [3].
