Installing keyboard assembly
NOTE: The keyboard and the keyboard tray together are called the keyboard assembly.
NOTE: The keyboard has multiple snap points on the lattice side which must be pushed down firmly at the snap points in
order to secure and fit it to the replacement keyboard.

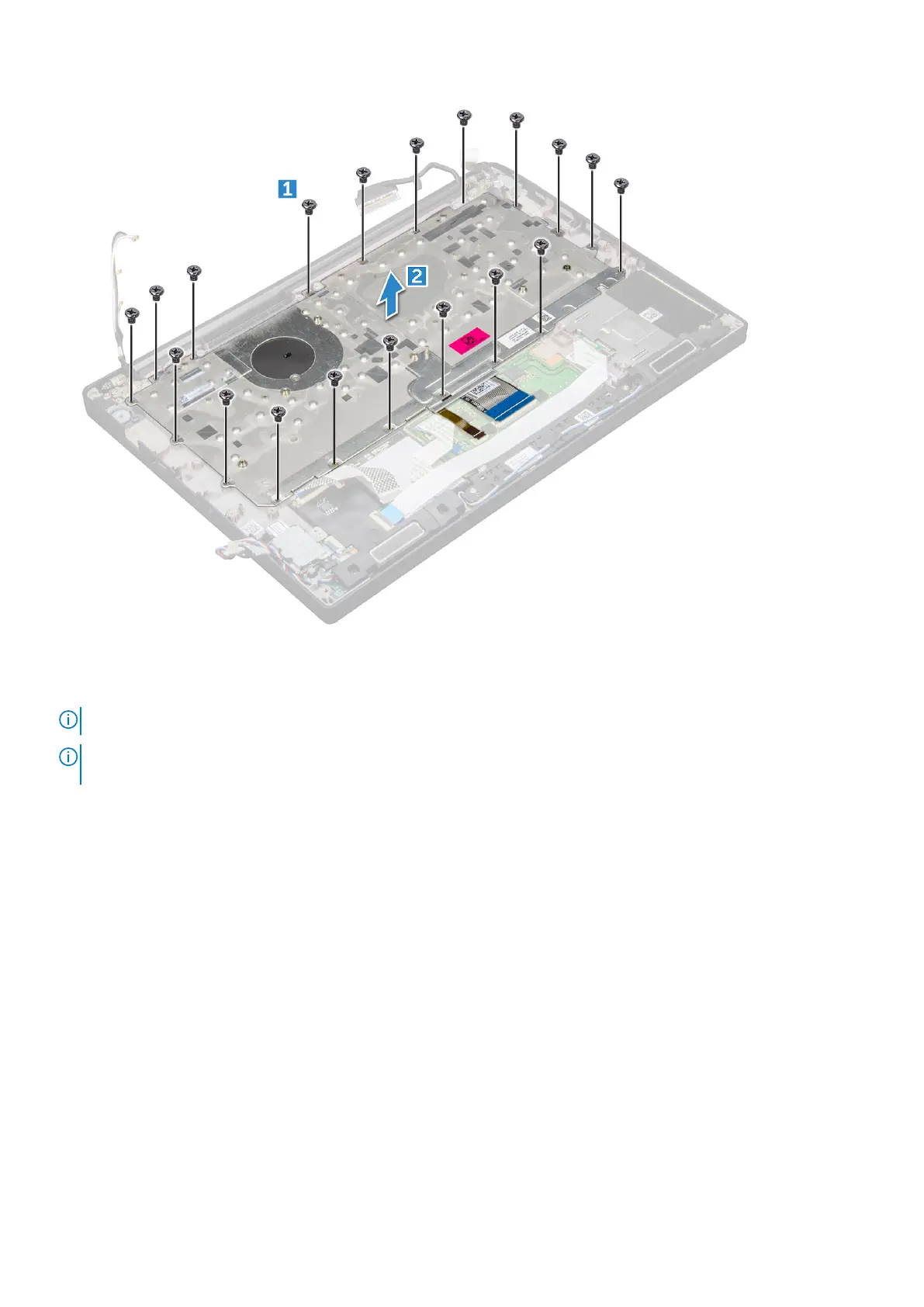

1. Align the keyboard assembly with the screw holders on the computer.
2. Tighten the M2.0 x 2.5 screws that secure the keyboard to the chassis.
3. Connect the keyboard cable, keyboard backlight cable, touchpad cable and USH cable to the connectors on the touchpad
buttons board.
4. Install the system board.
5. Install the heat sink.
6. Install the WLAN card.
7. Install the WWAN card.
8. Install the SSD card.
9. Install the memory module.
10. Connect the battery cable to the connector on the system board.
11. Install the base cover.
12. Follow the procedure in After working inside your computer.
