Installing smart card cage
1. Slide the smart card cage into the slot to align with the tabs on the computer.
2. Tighten the M2 x 3 screws to secure the smart card cage to the computer.
3. Affix the smart card cable and connect it to the connector on the computer .
4. Install the PCIe SSD card.
5. Connect the battery cable to the connector on the system board.
6. Install the base cover.
7. Follow the procedure in After working inside your computer.
Touchpad
Removing touchpad buttons board
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable from the connector on the system board.
4. Remove the speaker.

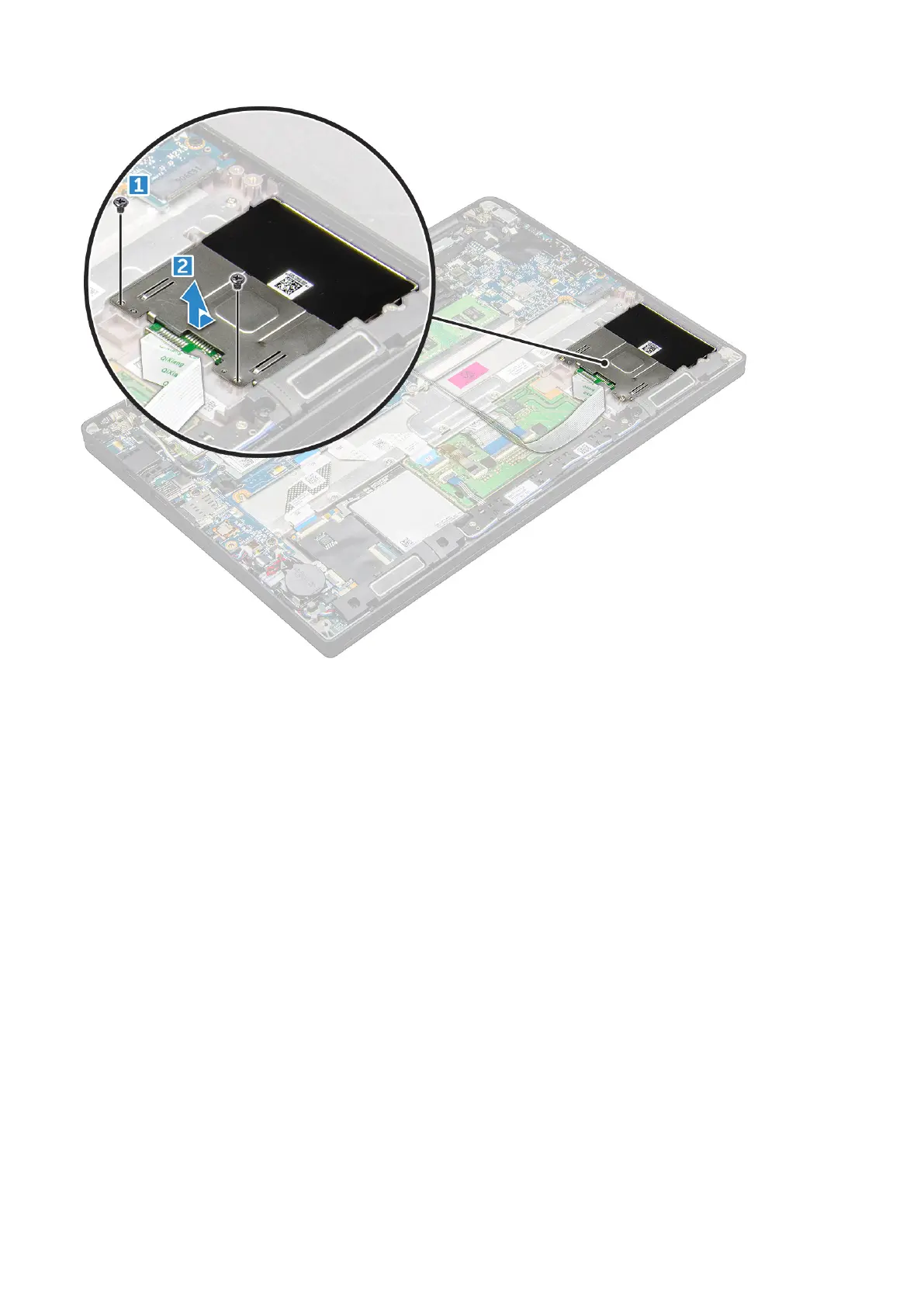

5. To disconnect the smart card cable:
a. Disconnect the smart card cable [1].
b. Lift the smart card cable that is affixed to the computer [2] to reveal the touchpad buttons board cable.
c. Remove the adhesive tape that secures the speaker cable to the touchpad panel [3].
Disassembly and reassembly
27
