NOTE: Ensure to remove the adhesive tape that covers the connector.
NOTE: Use a plastic scribe to release the cable from the connector. Do not pull the cable as it may result in
breakage.

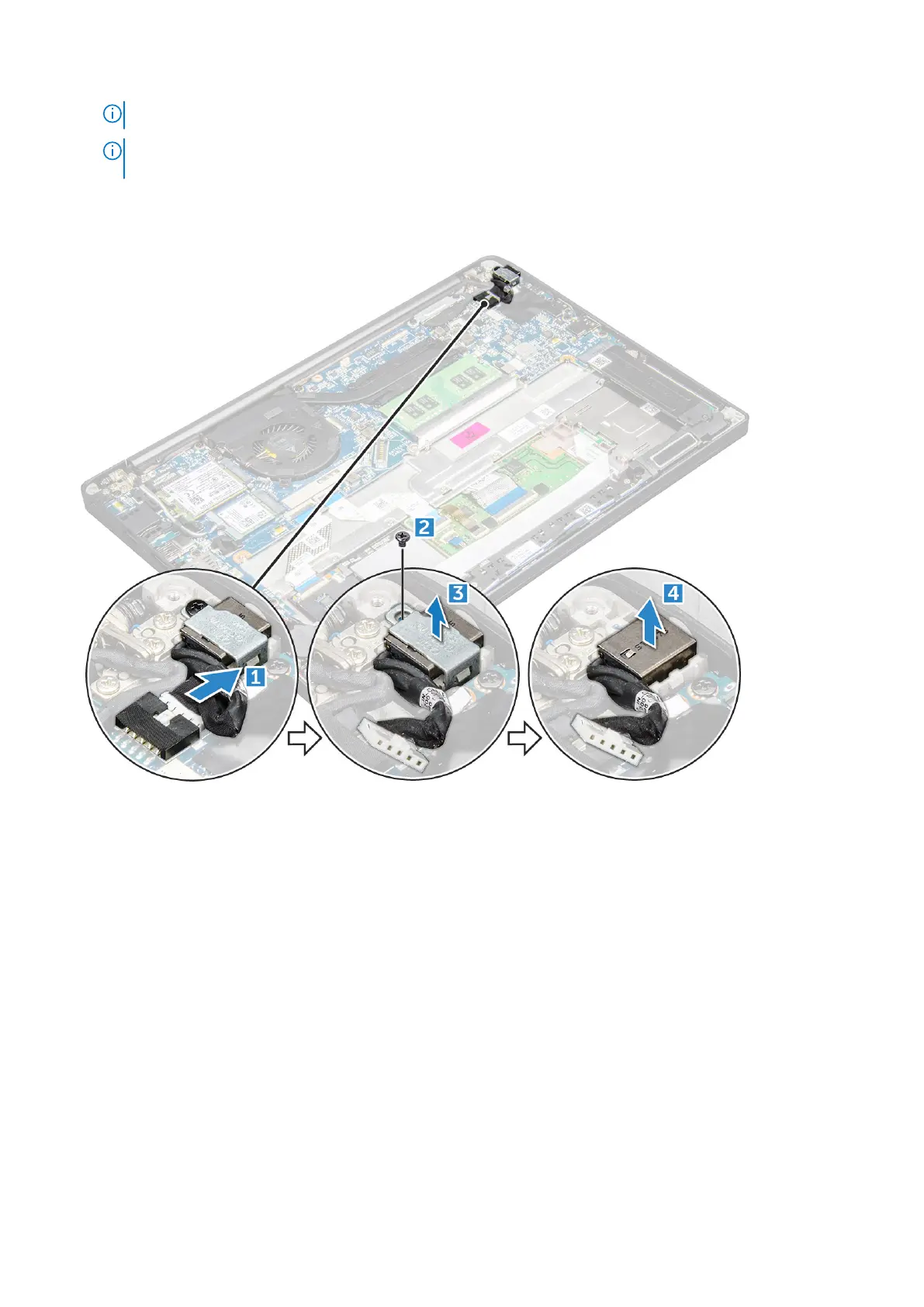

b. Remove the M2.0x3.0 screw (1) to release the metal bracket on the power connector port [2].
c. Lift the metal bracket from the computer [3].
d. the power connector port from the computer [4].
Installing power connector port
1. Install the power connector port into the slot on the computer.
2. Place the metal bracket on the power connector port.
3. Tighten the M2.0x3.0 screw to secure the power connector port to the computer.
4. Connect the power connector port cable to the connector on the system board.
5. Connect the battery cable to the connector on the system board.
6. Install the base cover.
7. Follow the procedure in After working inside your computer.
LED board
Removing LED board
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
24
Disassembly and reassembly
