Temperature
Maximum operation ambient temperature 35° C
For information about supported expanded operating temperature range and configurations, see
dell.com/support/manuals.
Control panel
Removing the control panel
1. Turn off the enclosure and host server.
2. Disconnect all the power cables connected to the enclosure.
3. Remove the hard disk drives from slot 0 to 5. See Removing a hard disk drive
4. Slide the control panel out of the chassis after pulling the release pin toward the right of the enclosure.

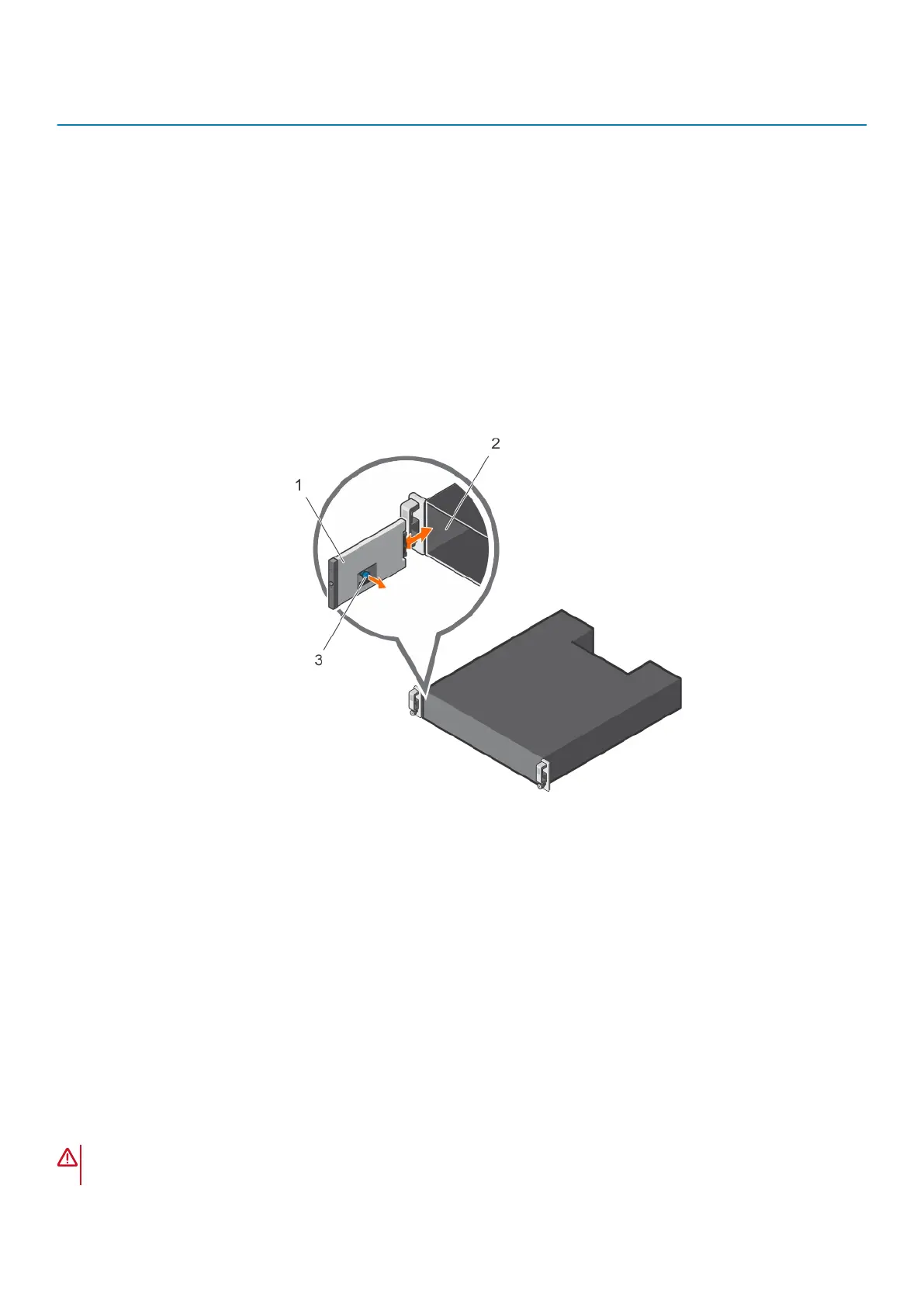

Figure 21. Removing and installing the control panel
a. control panel
b. chassis
c. release pin
Installing the control panel
1. Align the control panel with the slot on the enclosure.
2. Slide the control panel into the enclosure until the release pin clicks into place.
3. Install the hard disk drives in their respective slots. See Installing a hard disk drive.
4. Connect all the power cables to the enclosure.
5. Turn on the enclosure and the host server.
Backplane
WARNING:
Whenever you need to lift the enclosure, get others to assist you. To avoid injury, do not attempt to lift the
enclosure by yourself.
Installing enclosure components 25
