Dell Networking N4032 Getting Started Guide

Hardware Overview 7
• On board high performance CPU system with large memory.
XLP308H/256 MB NOR Flash/2GB DDR III RAM.
• Temperature monitoring
• Software readable thermal monitor
• RTC time clock support
• Hot plugging redundant power supply
• Current monitoring for Power management
• The fan is removable and can be managed
• Standard 1U chassis high
Front Panel
The following image shows the Dell Networking N4000 front panel:
Figure 1. Dell Networking N4000 Front Panel
The front panel includes:
• 24/48 fixed 10G Base-T or SFP+ ports
• Management port
• USB 2.0 port
NOTE: LED display for System, fan and power status indicators are on the back
panel.

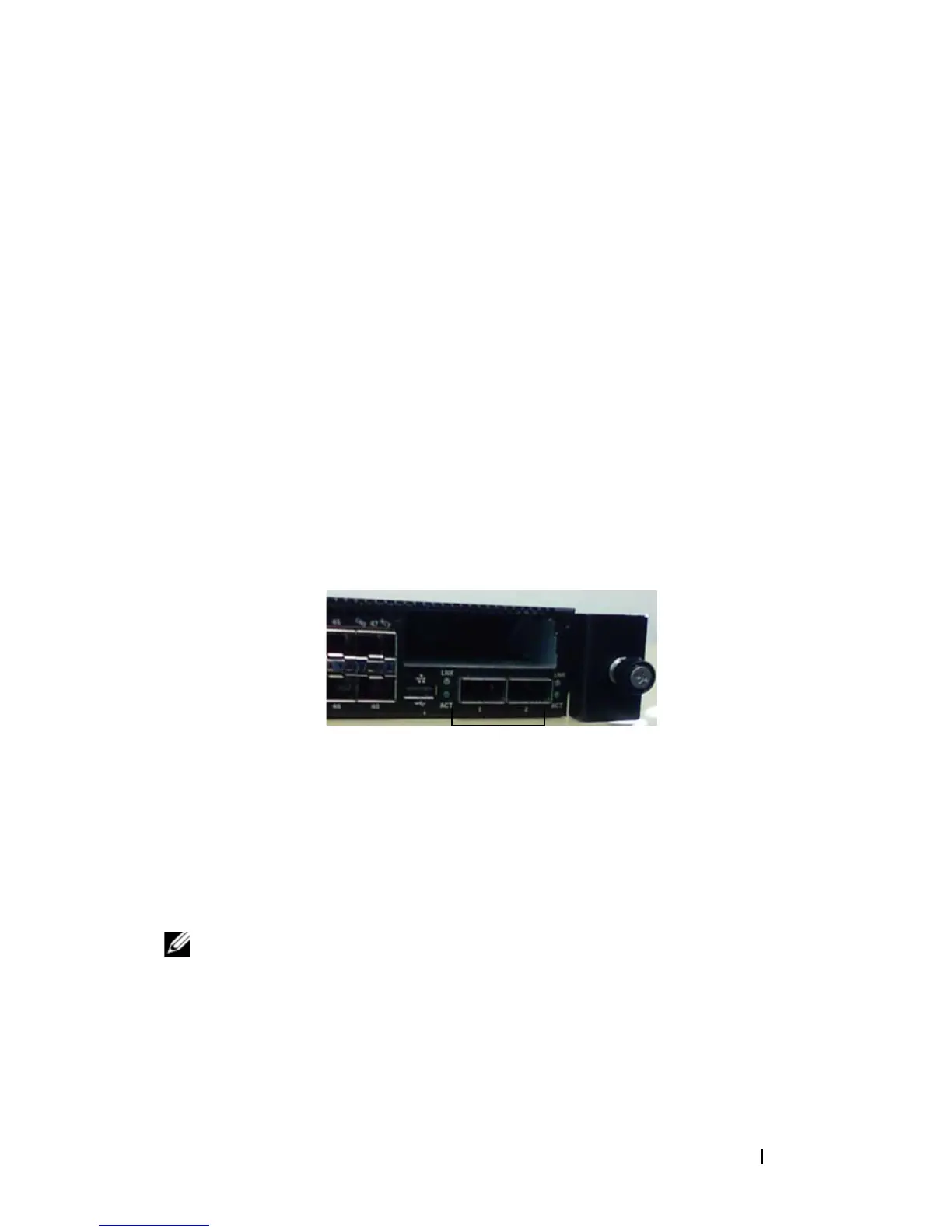

QSFP+ Ports

Dell Networking N4032 Specifications

General

Rack Units	1U
Layer	Layer 3
Manageable	Yes
Stackable	Yes
MAC Address Table Size	32, 000 entries
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 bytes
Input Voltage	100-240 VAC
Operating Temperature	0°C to 45°C (32°F to 113°F)
Uplink Ports	8 x 10 Gigabit Ethernet 10GBASE-T
Power Supply	Dual, hot-swappable
Operating Humidity	10% to 90% non-condensing
