Dell Networking N4032 User Manual

34 Stacking Dell Networking Switches: N4032, N4032F, N4064, N4064F
Each member of the stack will be updated with the latest firmware simply by updating the Master switch.

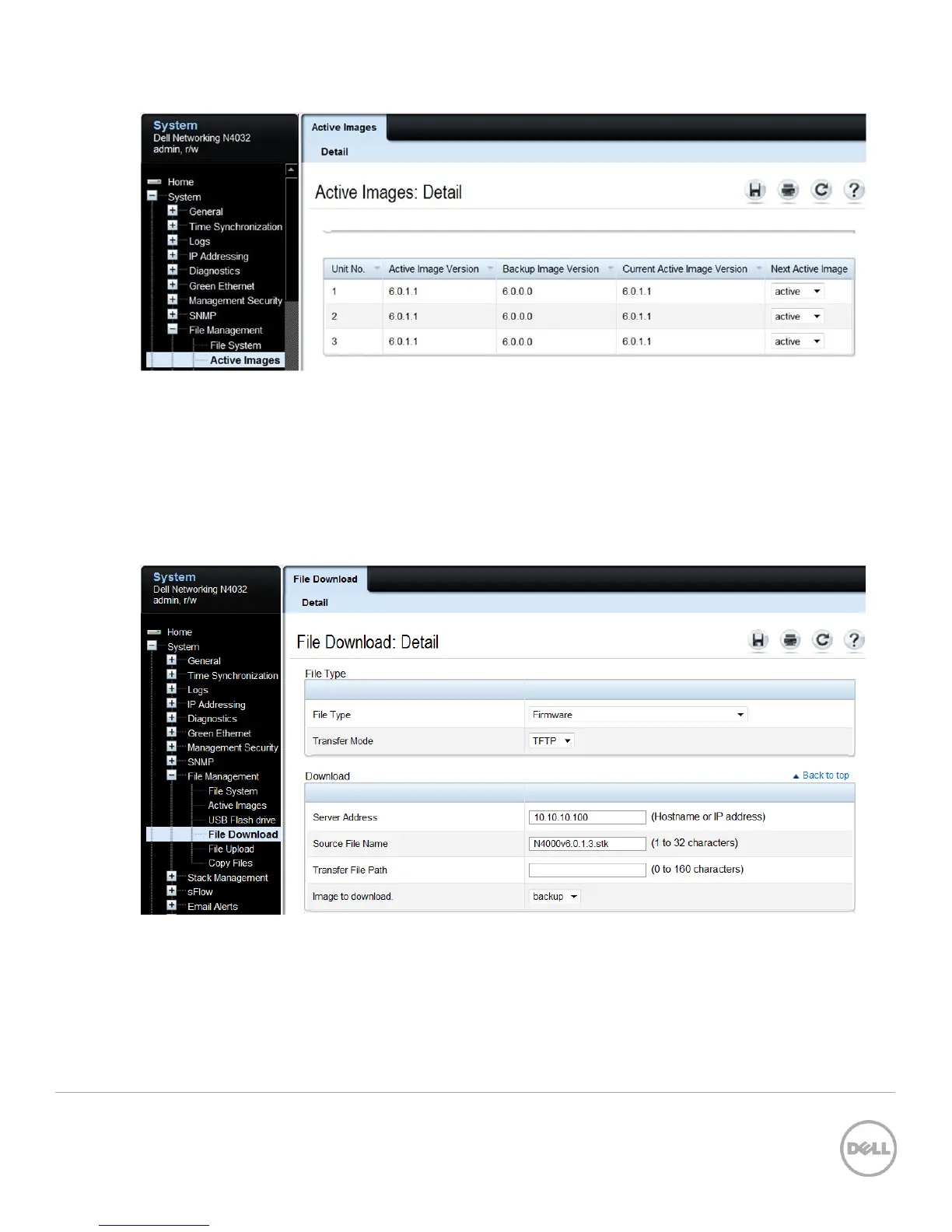

The screenshots below demonstrate how to copy the firmware to the Master using a TFTP server. The
stack needs access to a TFTP server on the network and the firmware file needs to be present in the
download folder of the TFTP server.
From the System > File Management > File Download page, select the appropriate settings. The most
common settings are shown here.
Click Apply. A warning will appear.

Dell Networking N4032 Specifications

General

Rack Units	1U
Layer	Layer 3
Manageable	Yes
Stackable	Yes
MAC Address Table Size	32, 000 entries
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 bytes
Input Voltage	100-240 VAC
Operating Temperature	0°C to 45°C (32°F to 113°F)
Uplink Ports	8 x 10 Gigabit Ethernet 10GBASE-T
Power Supply	Dual, hot-swappable
Operating Humidity	10% to 90% non-condensing
